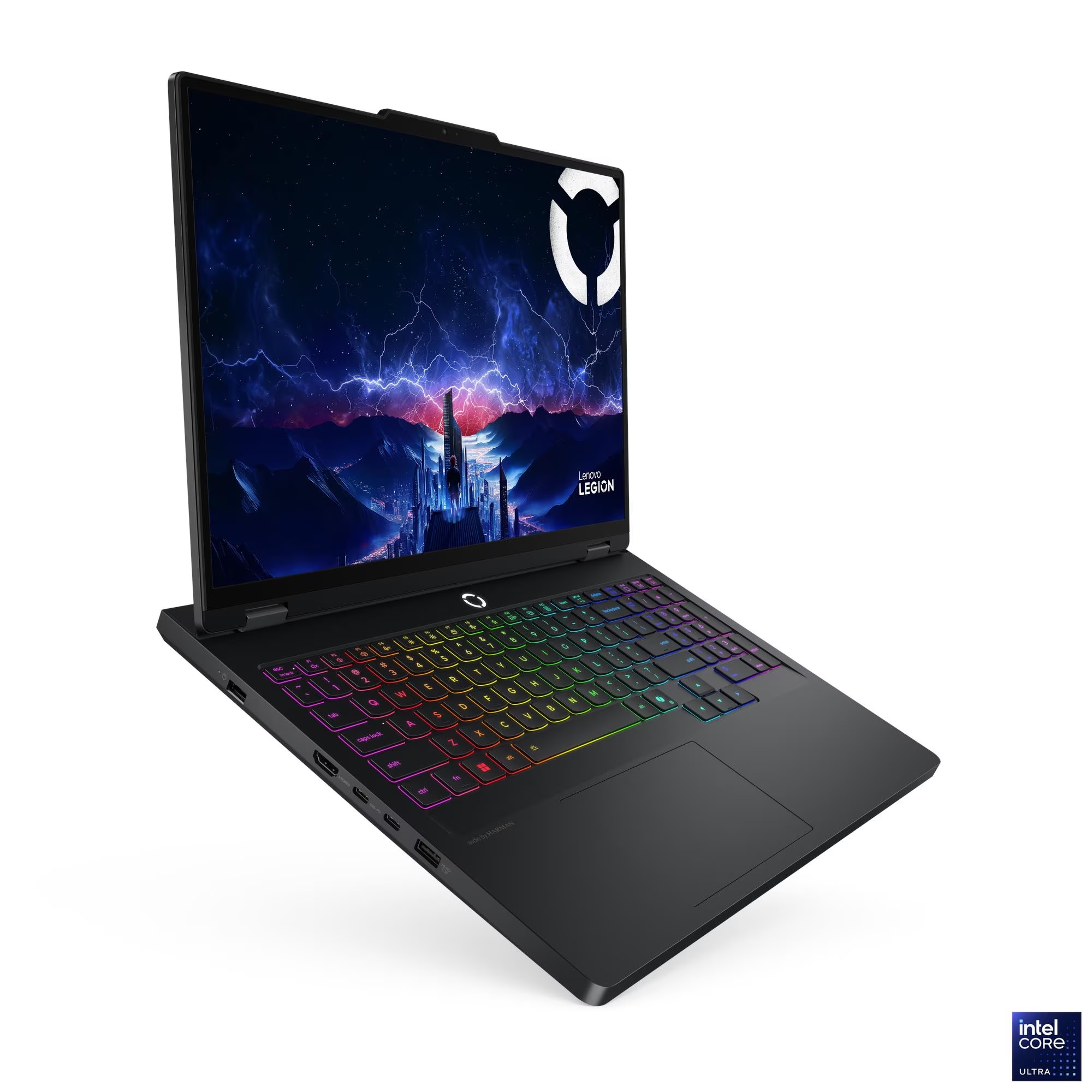

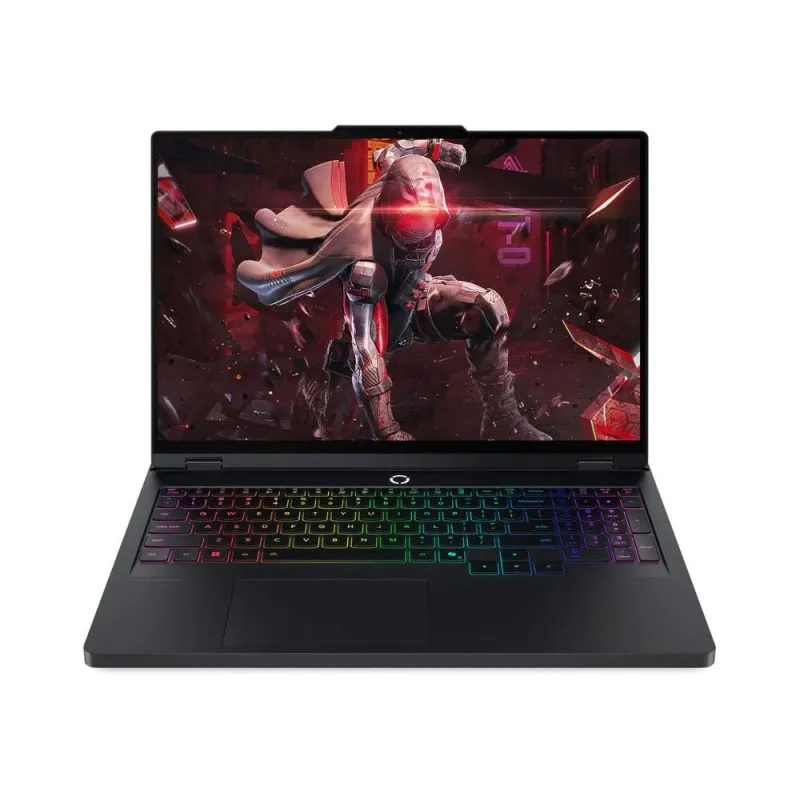

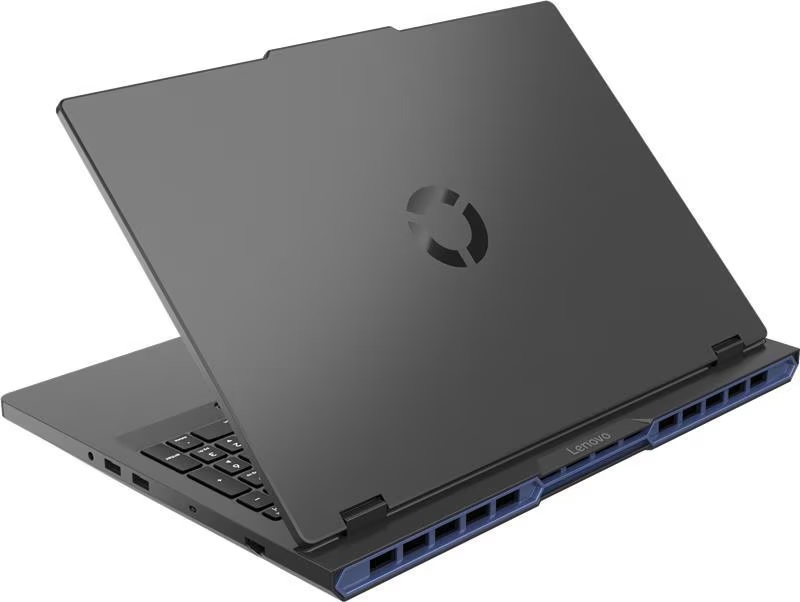

Lenovo Legion 5 16IAX10 Ultra 9 - product image
Lenovo Legion 5 16IAX10 Ultra 9 - product image
LENOVO LEGION 5 16IAX10 ULTRA 9
Lenovo Legion 5 16IAX10 Ultra 9 - product image
Lenovo Legion 5 16IAX10 Ultra 9 - product image
LENOVO YOGA 7 14IRL8
Lenovo Yoga 7 14IRL8 950 $
Back to products
LENOVO IDEAPAD PRO 5 16IAH10
Lenovo IdeaPad Pro 5 16IAH10 1.465 $
LENOVO

Lenovo Legion 5 16IAX10 Ultra 9

1.615 $

LENOVO LEGION 5 16IAX10 ULTRA 9
83NX0000US
CORE ULTRA 9 275HX 5.4Ghz 24 CORE 36MB CACHE,
32GB DDR5, 1TB NVME,
LED 16” WQXGA 240Hz 500nits IPS HDR 400 G-Sync,
VGA NVIDIA GEFORE RTX 5060 8GB DDR6,
LAN, WIFI, BT,
24 ZONE RGB BACKLIT KEYBOARD,
WINDOWS 11 HOME,
NEW O.B., 1 YEAR WARRANTY


Compare
Add to wishlist
SKU: 9849dc8a3fbd Categories: ,
Description

LENOVO LEGION 5 16IAX10 ULTRA 9 83NX0000US

PERFORMANCE
Processor
Intel Core™ Ultra 9 275HX, 24C (8P + 16E) / 24T, Max Turbo up to 5.4GHz, 36MB Intel® Smart Cache
AI PC Category
AI-Powered Gaming PC
NPU
Integrated Intel® AI Boost, up to 13 TOPS
Graphics
NVIDIA GeForce RTX™ 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 105W, 572 AI TOPS
Chipset
Intel® HM870 Chipset
Memory
2x 16GB SODIMM DDR5-5600
Memory Slots
Two DDR5 SODIMM slots, dual-channel capable
Max Memory
Up to 32GB DDR5-5600 offering
Storage
1TB SSD M.2 2242 PCIe® 4.0×4 NVMe®
Storage Slot
Two M.2 2280 PCIe® 4.0 x4 slots
Max Storage Support
Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB each
Optical
None
Card Reader
No Card Reader
Audio Chip
High Definition (HD) Audio, Realtek® ALC3306 codec
Speakers
Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio
Microphone
2x, Array
Camera
5.0MP with E-shutter
Battery
80Wh
Power Adapter
245W Slim Tip (3-pin)
Special Features
AI Chip: LA3
DESIGN
Display
16″ WQXGA (2560×1600) IPS 500nits Anti-glare, 100% DCI-P3, 240Hz, DisplayHDR™ 400, Dolby Vision®, G-SYNC®, Low Blue Light, High Gaming Performance
Touchscreen
None
Screen-to-Body Ratio
91.7% AAR (active area ratio)
Color Calibration
Factory Color Calibration
Pen
Pen Not Supported
Keyboard
24-Zone RGB Backlit, English
Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Dimensions (WxDxH)
364.38 x 268.06 x 21.69-25.95 mm (14.35 x 10.55 x 0.85-1.02 inches)
Weight
Around 2.45 kg (5.4 lbs)
Case Color
Storm Grey
Case Material
Aluminium (Top), PC-ABS (Bottom)
Surface Treatment
Anodizing Sandblasting
SOFTWARE
Operating System
Windows® 11 Home, English
Bundled Software
Office Trial + Lenovo® AI Now
CONNECTIVITY
WLAN + Bluetooth
Wi-Fi® 7, 802.11be 2×2 + BT5.4
WWAN
WWAN Not Supported
Ethernet
100/1000M (RJ-45)
Standard Ports
  • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
  • 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
  • 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1
  • 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with DisplayPort™ 2.1
  • 1x HDMI® 2.1, up to 8K/60Hz
  • 1x Headphone / microphone combo jack (3.5mm)
  • 1x Ethernet (RJ-45)
  • 1x Slim tip Power connector
Docking
Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for Legion 5 16IAX10
SECURITY & PRIVACY
Security Chip
Firmware TPM 2.0 Enabled
Fingerprint Reader
No Fingerprint Reader
Other Security
E-shutter
