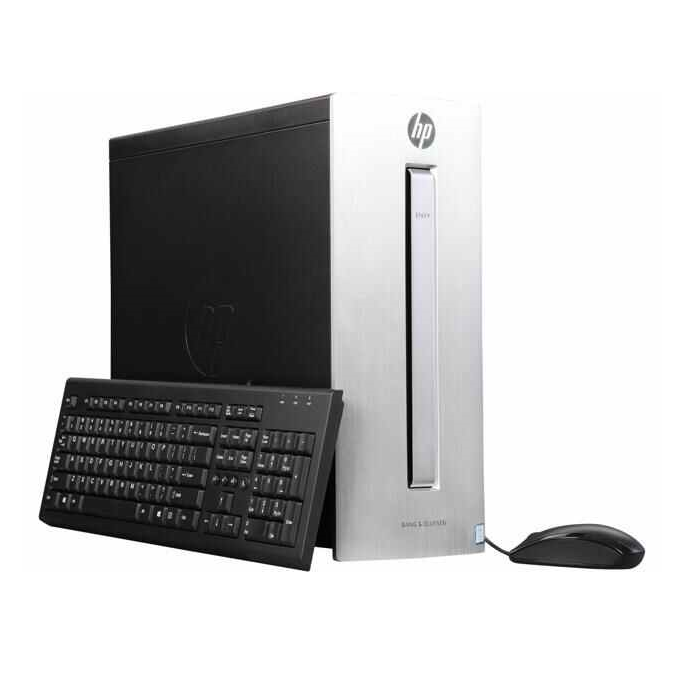

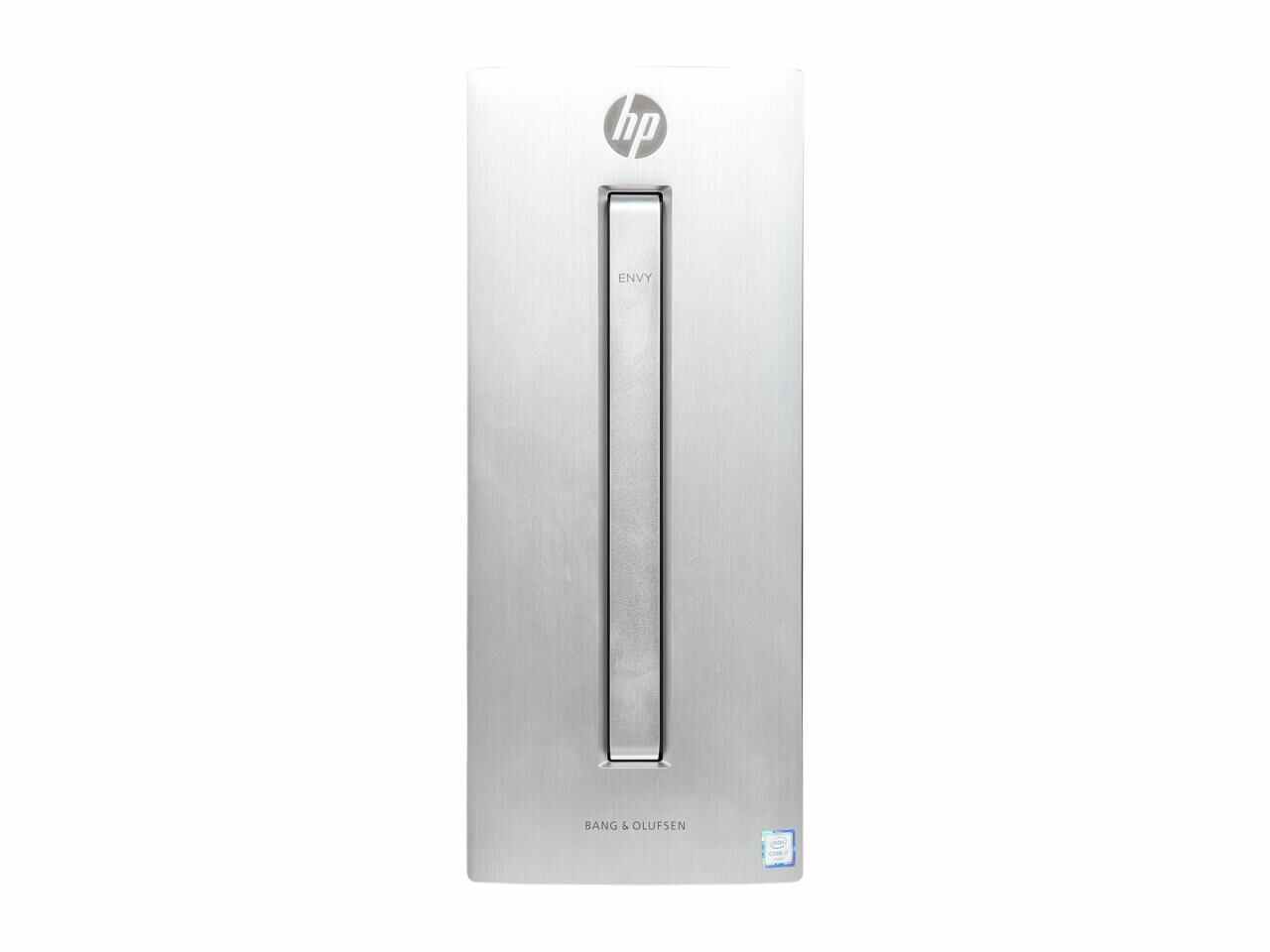

HP Envy 750-287C i7

550 $

HP ENVY 750-287C i7
INTEL i7-6700T 4.0GHz,
RAM 8GB DDR4, HDD 1TB,
DVDRW, LAN, WIFI, BLUETOOTH,
HDMI, CARD READER,
USB KEYBOARD AND MOUSE,
WINDOWS 10 64 BITS ORIGINAL

SKU: c6f3210cccd8 Category: Desktop PCs

HP ENVY 750-287C i7

Product Release Information

Product Number

T4A40AA

Motherboard

Odense

Figure : Odense motherboard top view

Manufacturer: Pegatron
Form factor: uATX – 24×24 cm (9.4×9.4 in)
Chipset: H110
Memory sockets: 2 x DDR3L
Processor socket: LGA 1151
Expansion Slots:
- 1 PCI Express x16 (Gen 3.0)
- 1 PCI Express x1 (Gen 2.0)
- One M.2 socket 1, key A
For more details, see Odense motherboard specifications.

Processor

Intel Core i7-6700

CPU speed: 3.4 GHz (max turbo boost – 4.0 GHz)
CPU cores: 4
CPU Cache: 8 MB
TDP: 65 W
Socket: LGA 1151

Memory

8 GB

Amount: 8 GB

Memory upgrade information

Dual channel memory architecture
Two 240-pin DDR3L DIMM sockets
Supports the following:
Supports 1 GB, 2 GB, 4 GB and 8 GB DIMMs
Supports up to 4 GB on 32-bit systems

NOTE:

32-bit systems cannot address a full 4.0 GB of memory.
Supports up to 16 GB (unbuffered) on 64-bit computers

NOTE:

Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system.

Video Graphics

Integrated graphics

Integrated Intel HD Graphics

Sound/audio

Integrated audio

Audio Codec: ALC3863-CG
5.1 channel support
Audio jack presence detection

Networking

Integrated Bluetooth 4.0 and Wireless LAN 802.11a/b/g/n/ac featuring Dual-band (2.4 GHz and 5.0 GHz) 1 x 1 technology

Interface: M.2
Transmission standards: 802.11 a/ b/g/n/ac
Dual band: 2.4 GHz and 5.0 GHz

LAN: 1000BASE-T

Technology: Realtek RTL8161
Data transfer speeds: up to 10/100/1000 Mb/s
Transmission standards: 1000BASE-T Ethernet

Hard Drive

1 TB

Size: 1 TB
Interface: SATA
Rotational Speed: 7200 rpm

CD/DVD Disc Drive

Ultra Slim Tray SuperMulti DVD Burner drive

Memory Card Reader

7-in-1 multimedia card reader

Figure : View of memory card reader

Supports the following cards:

Secure Digital (SD)
Secure Digital High Capacity (SDHC)
SDXC
Memory Stick
Memory Stick Select
Memory Stick PRO
Memory Stick MagicGate

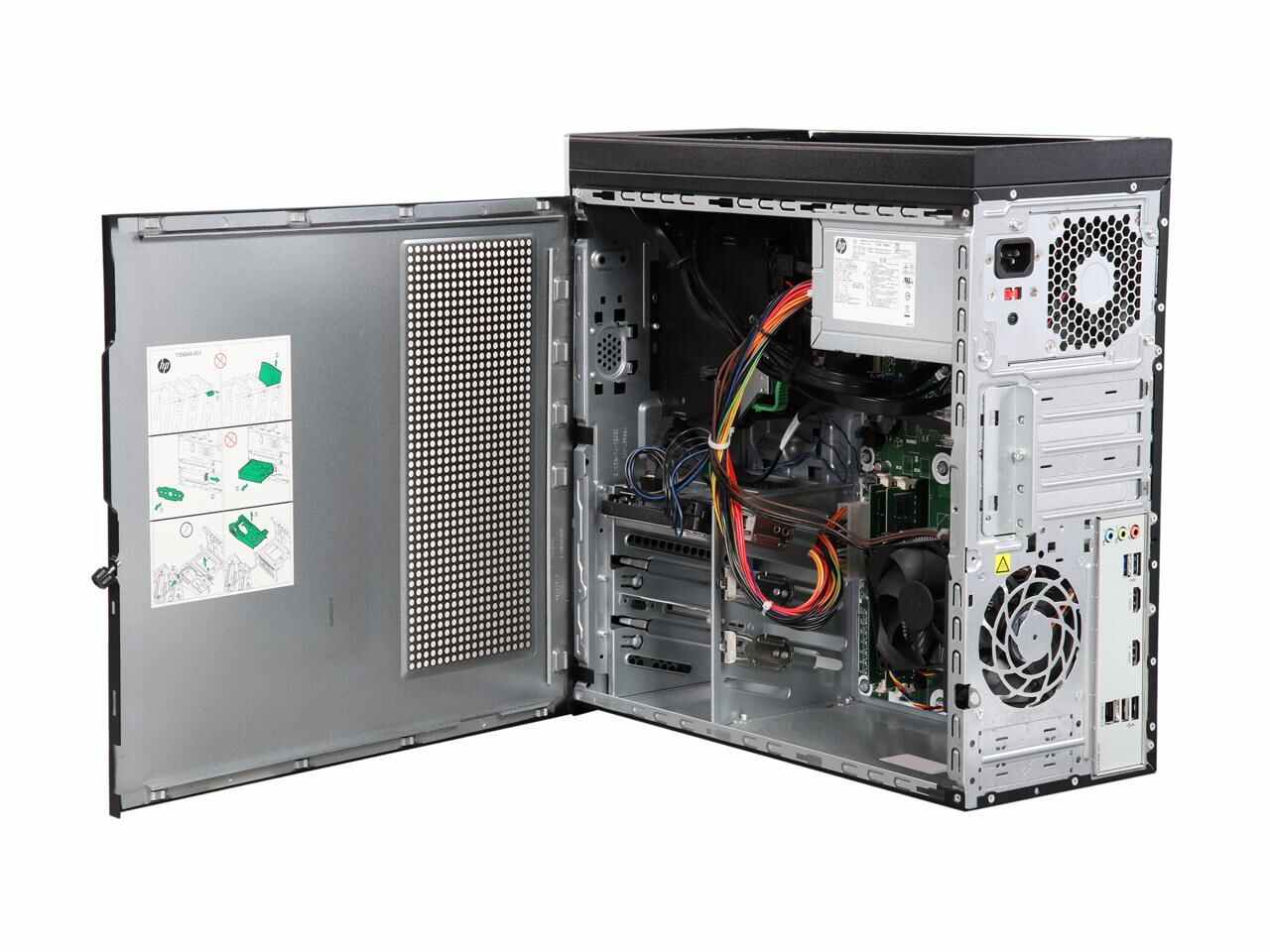

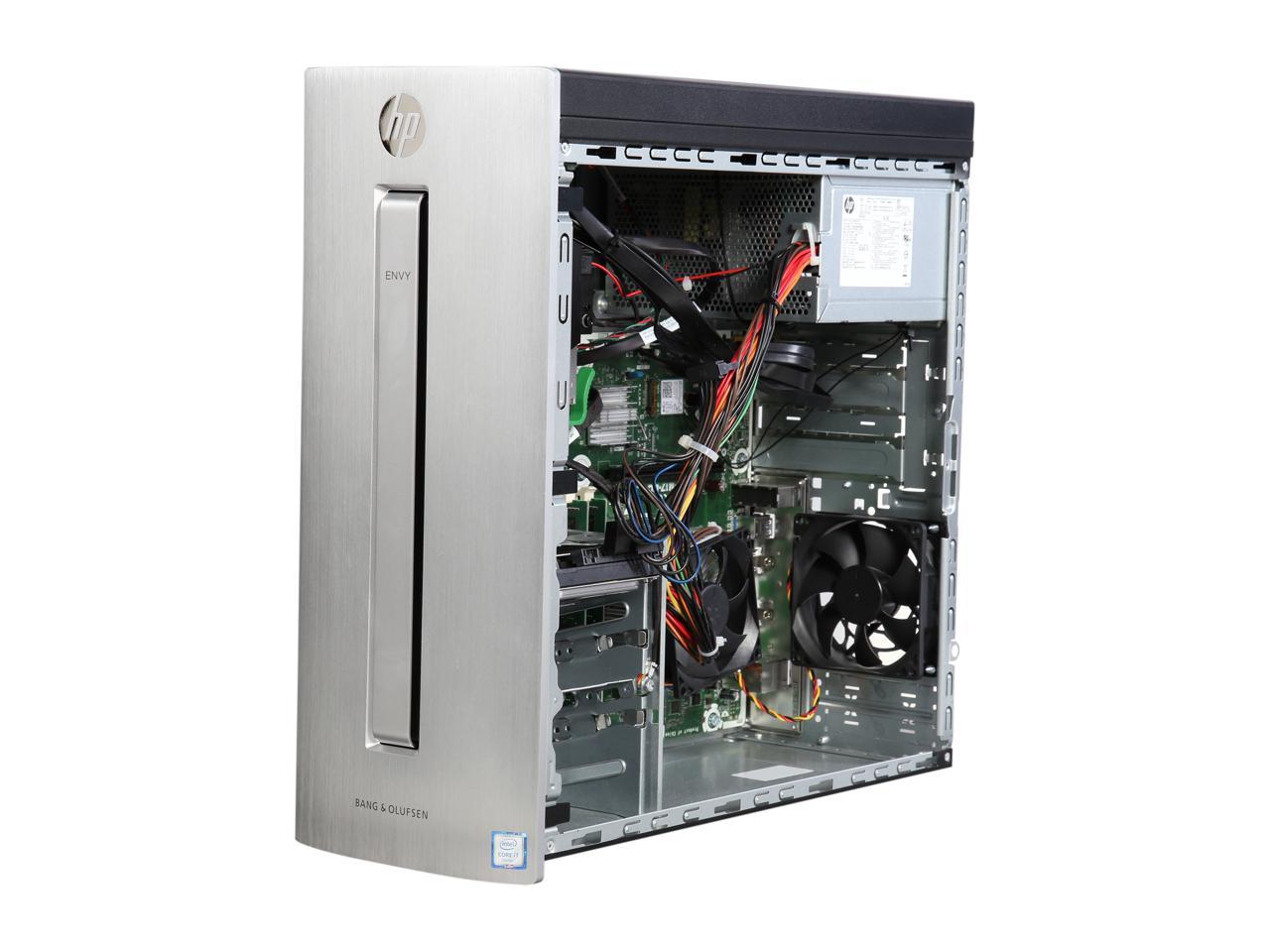

Computer Case

Chassis

Height: 40.11 cm (15.79 in)
Width: 16.51 cm (6.50 in)
Depth: 40.49 cm (15.94 in)
Weight 9.85 kg (21.72 lbs) – without packaging

Power Supply

Internal 300 W PSU

300 W uATX aPFC internal power supply

I/O Ports

Top I/O ports

USB 3.0: 2
USB 2.0: 2
Headphone: 1
Microphone: 1

Back I/O ports

Figure : Odense back I/O panel

USB 2.0: 2
LAN (Ethernet)
HDMI: 2
USB 3.0: 2
Audio: Line in
Audio: Line out
Audio: Microphone

Keyboard, Mouse and Input Devices

HP USB keyboard

Interface: USB
Dimensions (approximately):
- Cable length: 1.8 m (5 ft, 11 in)
- Height: 26.5 mm (1.0 in)
- Width: 133.0 mm (5.2 in)
- Length: 380.2 mm (15.0 in)
Special buttons*:
- Volume up
- Volume down
- Mute

  NOTE:

  * Buttons are not configurable

HP USB optical mouse

Interface: USB
Dimensions (approximately):
- Cable length: 1.8 m (5 ft, 11 in)
- Length: 114.6 mm (4.5 in)
- Width: 63.2 mm (2.5 in)
- Height: 37.2 mm (1.5 in)
