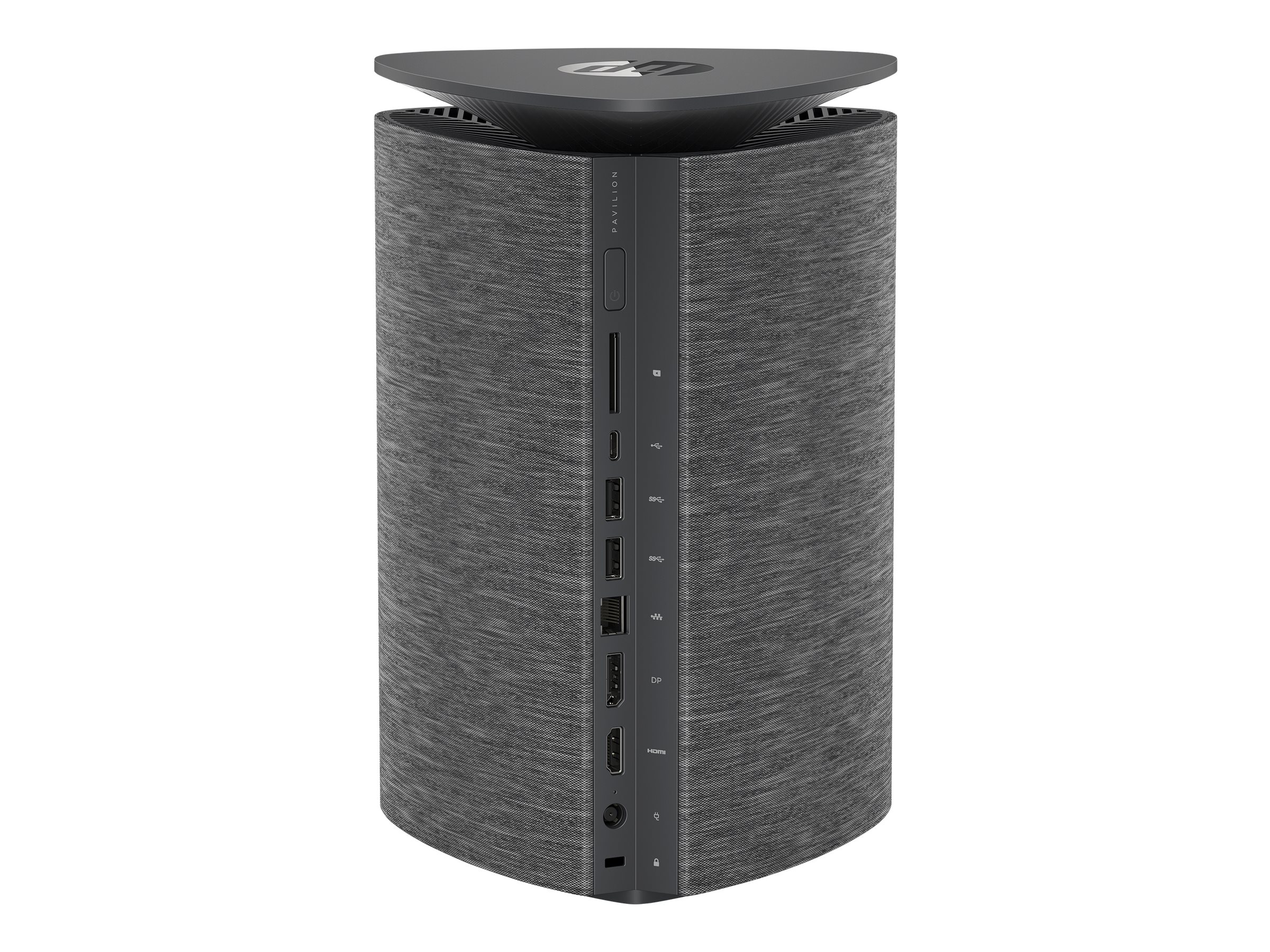

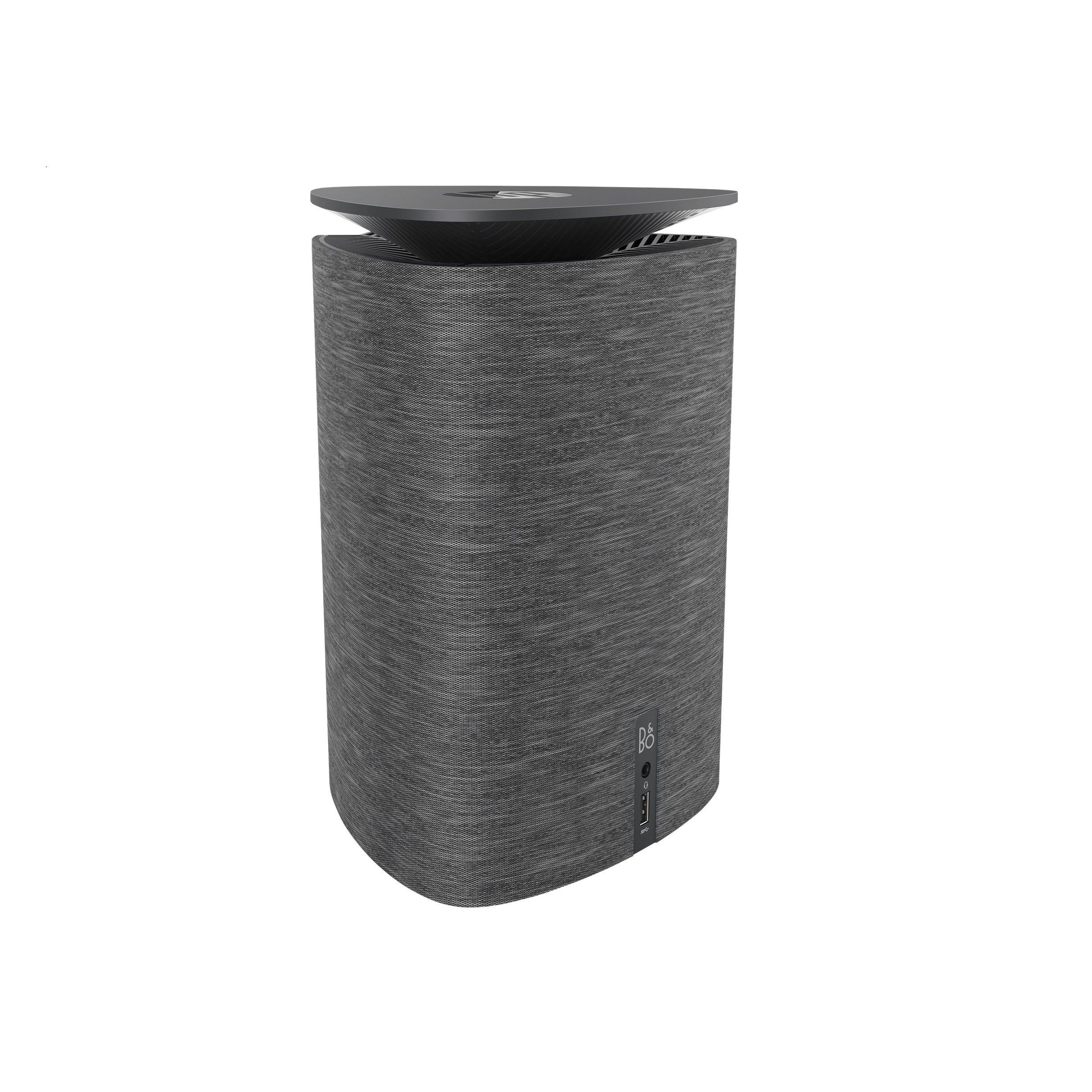

HP Pavilion Wave 600-A014 i3

420 $

INTEL HP PAVILION WAVE 600-A014 i3i3-6100T 3M 3.2GHz,
RAM 8GB DDR4, HDD 1TB SATA,
LAN, WIFI, BLUETOOTH,
HDMI, CARD READER, TYPE C,
WIRELESS KEYBOARD AND MOUSE,
WINDOWS 10 64 BITS ORIGINAL,
1 YEAR WARRANTY

SKU: cc28f1dc0beb Category: Desktop PCs

HP PAVILION WAVE 600-A014 i3

Product Release Information

Product Number

X6F47AA

Motherboard

Lyon

Figure : Lyon motherboard top view

Figure : Lyon motherboard bottom view

Form factor: uATX: 14.1×19.5 cm (5.6×7.7 in)
Chipset: H170
Memory sockets: 2 x DDR4
Processor socket: LGA 1151
Expansion Slots:
- One M.2 socket 1, key A
- One WLAN LED header
- One M.2 socket 3, key M
For more details, see Lyon motherboard specifications.

Processor

Intel Core i3-6100T

CPU speed: 3.2 GHz
CPU cores: 2
CPU Cache: 3 MB
TDP: 35 W
Socket: LGA 1151

Processor upgrade information

Memory

8 GB

Amount: 8 GB
Speed: PC4-17000 MB/s
Type: DDR4-2133

Memory upgrade information

Dual channel memory architecture
Two DDR4 UDIMM (288-pin) sockets
Supports up to PC4-17000 (DDR4-2133)
Supports 4 GB and 8 GB UDIMMs
Supports up to 4 GB on 32-bit systems

NOTE:

32-bit systems cannot address a full 4.0 GB of memory.
Supports up to 16 GB (unbuffered) on 64-bit computers

NOTE:

Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system.

Video Graphics

Integrated graphics

Integrated Intel HD Graphics

Sound/Audio

Integrated audio

Audio Codec: ALC3265-CG
Audio jack presence detection

Networking

Integrated Bluetooth 4.2 and Wireless LAN 802.11a/b/g/n/ac featuring Dual-band (2.4 GHz and 5.0 GHz) 1 x 1 technology

Interface: M.2
Transmission standards: 802.11 a/b/g/n/ac
Dual band: 2.4 GHz and 5.0 GHz

LAN: 1000BASE-T

Technology: Realtek RTL8161
Data transfer speeds: up to 10/100/1000 Mb/s
Transmission standards: 1000BASE-T Ethernet

Hard Drive

1 TB

Size: 1 TB
Interface: SATA
Rotational Speed: 7200 rpm

Memory Card Reader

3-in-1 memory card reader

Figure : Tesla memory card reader

Supports the following cards:

Secure Digital (SD)
Secure Digital High Capacity (SDHC)
SDXC

Computer Case

Chassis

Height: 23.50 cm (9.25 in)
Width: 17.30 cm (6.81 in)
Depth: 16.81 cm (6.62 in)
Weight 2.90 kg (6.39 lb) – without packaging

Power Supply

External 150 W PSU

Total wattage: 150 W
Output voltage: 19.5 V
Efficiency: 89%

I/O Ports

Front I/O ports

USB 3.0: 1
Headphone/Microphone jack: 1

Back I/O ports

Figure : Lyon back I/O panel

Power button
Power indicator LED
Memory card reader
USB 3.0-Type C: 1
USB 3.0: 2
LAN (Ethernet)
DisplayPort
HDMI
HDD activity LED
DC power in

Keyboard, Mouse and Input Devices

Wireless keyboard

Wireless technology: Two-way radio frequency
Batteries: 2 AAA alkaline batteries
Battery life: 10 months (typical)
Dimensions (approximate):
- Height: 26.5 mm (1.0 in)
- Width: 133.0 mm (5.2 in)
- Length: 380.2 mm (15.0 in)
Special keys:
- Mute
- Volume Up
- Volume Down

Wireless mouse

Wireless technology: Two-way 2.4GHz Radio Frequency
Batteries: 2 AA alkaline
Battery life: 6-12 months (typical)
Buttons:
- 2 primary buttons
- Clickable scroll wheel
Dimensions (approximate):
- Length: 114.8 mm (4.5 in)
- Width: 63.4 mm (2.5 in)
- Height: 37.2 mm (1.5 in)

Operating System

Microsoft Windows 10 Home (64-bit)

HP Pavilion Wave 600-A014 i3

HP PAVILION WAVE 600-A014 i3

Product Release Information

Product Number

Motherboard

Lyon

Processor

Intel Core i3-6100T

Processor upgrade information

Memory

8 GB

Memory upgrade information

Video Graphics

Integrated graphics

Sound/Audio

Integrated audio

Networking

Integrated Bluetooth 4.2 and Wireless LAN 802.11a/b/g/n/ac featuring Dual-band (2.4 GHz and 5.0 GHz) 1 x 1 technology

LAN: 1000BASE-T

Hard Drive

1 TB

Memory Card Reader

3-in-1 memory card reader

Computer Case

Chassis

Power Supply

External 150 W PSU

I/O Ports

Front I/O ports

Back I/O ports

Keyboard, Mouse and Input Devices

Wireless keyboard

Wireless mouse

Operating System
