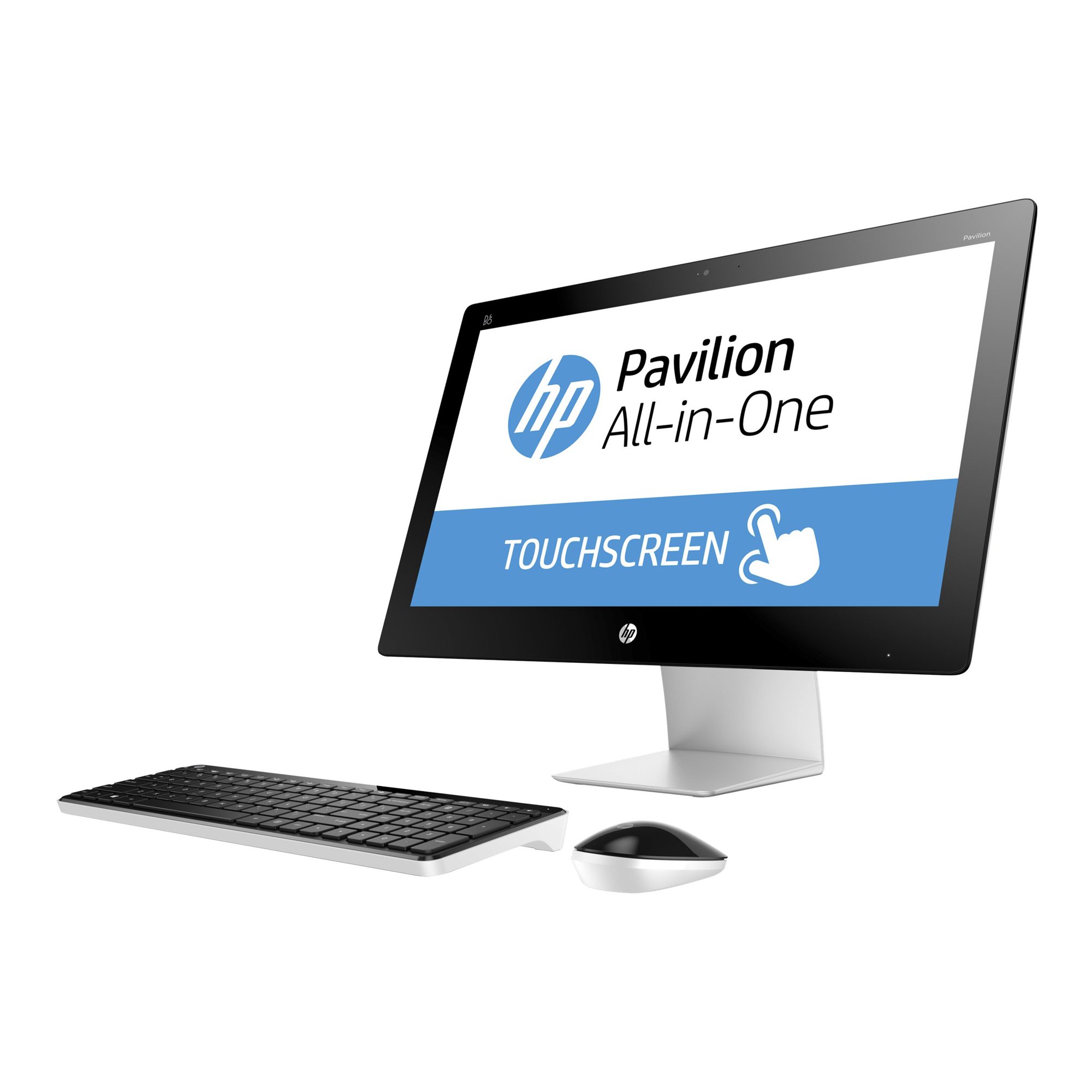

HP Pavilion 23-Q151 All-in-One i7 Touch White

• Size: 58.42 cm (23 in) diagonal
• Display resolution: 1920 x 1080
• Aspect ratio: 16:9

• Manufacturer: Quanta
• Form factor: uATX: 28.3×20.0 cm (11.1×7.9 in)
• Chipset: Intel H81
• Memory sockets: 2 x DDR3L
• Processor socket: LGA 1150
• Expansion Slots:
  • One M.2 slot for WLAN
• For more details, see Crusher-U motherboard specifications.

• TDP: 35 W
• Operating speed: Up to 2.2 GHz (up to 3.2 GHz turbo)
• Number of cores: 4
• Socket: LGA 1150

• Amount: 8 GB
• Speed: PC3-12800 MB/s
• Type: DDR3-1600

• Dual channel memory architecture
• Two DDR3L SO-DIMMs (204-pin) sockets
• Supports PC3L-12800 (DDR3L-1600)
• Supports 1 GB, 2 GB, 4GB and 8 GB SO-DIMMs
• Supports up to 4 GB on 32-bit systems

  NOTE:

  32-bit systems cannot address a full 4.0 GB of memory.

• Supports up to 16 GB (unbuffered) on 64-bit computers

  NOTE:

  Maximum memory shown reflects the capability of the hardware and can be limited furhter in the operating system.

• Intel Graphics is combined with the installed processor.
• See the Processor upgrade information section of this document for detailed information.

• Audio CODEC: Realtek ALC3228-CG
• Built-in speaker amplified with 1.5 W per channel
• Audio jack presence detection

• 2-Watt speakers

• Interface: M.2
• Transmission standards: 802.11 a/ b/g/n/ac
• Dual band: 2.4 GHz and 5.0 GHz

• Technology: Realtek RTL8161GSH
• Data transfer speeds: up to 10/100/1000 Mb/s
• Transmission standards: 1000BASE-T Gigabit Ethernet

• Size: 1 TB
• Interface: SATA
• Rotational Speed: 7200 rpm

• Data transfer rates up to 3,600 KB/s (CD read/write)
• Data transfer rates up to 10,800 KB/s (DVD read/write)

• Secure Digital™ (SD)
• Secure Digital High Capacity (SDHC)
• SDXC

• Height: 45.0 cm (17.7 in)
• Width: 56.9 cm (22.4 in)
• Depth: 19.3 cm (7.6 in)
• Weight: 8.05 kg (17.75 pounds) unpackaged

1. Webcam and microphone
2. Screen
3. Optical drive
4. Power button
5. Speakers
6. Bottom I/O ports

1. Stand

• Total wattage: 90W
• Nominal input voltage range: 100-240V (50-60Hz)
• Dimensions: 134 mm x 58 mm x 31 mm (5.2 x 2.2 x 1.2 inches)
• Output voltage: 19.5V

1. DC power input
2. Power activity LED
3. LAN (Ethernet)
4. USB 2.0: 4
5. HDMI

1. USB 3.0: 2
2. Headphone/Microphone combo port
3. Memory card reader

• Wireless technology: Two-way radio frequency
• Batteries: 2 AAA alkaline batteries
• Battery life: 10 months (typical)
• Dimensions (approximate):
  • Height: 26.5 mm (1.0 inch)
  • Width: 133.0 mm (5.2 inches)
  • Length: 380.2 mm (15.0 inches)
• Special keys:
  • Mute
  • Volume Up
  • Volume Down

• Wireless technology: Two-way 2.4GHz Radio Frequency
• Batteries: 2 AA alkaline
• Battery life: 6-12 months (typical)
• Buttons:
  • 2 primary buttons
  • Clickable scroll wheel
• Dimensions (approximate):
  • Length: 114.8 mm (4.5 inches)
  • Width: 63.4 mm (2.5 inches)
  • Height: 37.2 mm (1.5 inches)

NOTE:

The webcam configuration might vary depending on your model.

1. Web camera
2. Webcam activity LED
3. Microphone
