HP Pavilion 24-G020 All-in-One Am A8 Touch White

550 $

HP PAVILION 24-G020 ALL-IN-ONE AM A8 TOUCH WHITE
AMD A8-7410 QUAD CORE 2.5Ghz,
RAM 8GB DDR4, HDD 1TB SATA,
24” IPS TOUCHSCREEN FHD (1920×1080),
DVD WRITER, LAN 1GIGA, WIFI,
CARD READER, USB KEYBOARD+MOUSE,
WIN 10 HOME, 1 YEAR WARRANTY

SKU: 78373de17152 Category: All-in-One PCs

HP PAVILION 24-G020 ALL-IN-ONE AM A8 TOUCH WHITE

Product Release Information

Product Number

V8P00AA

Display

60.45 cm (23.8 in) 10-point touch-enabled diagonal widescreen full high-definition IPS WLED-backlit edge-to-edge display

Size: 60.45 cm (23.8 in) diagonal
Display resolution: 1920 x 1080

Motherboard

Bali-U

Figure : Bali-U motherboard

Form factor: Customized: 15.0×14.0 cm (5.9×5.5 in)
Chipset: combined with the processor
Memory sockets: 2 x DDR3L
Expansion Slots:
- One M.2 slot for WLAN
For more details, see Bali-U motherboard specifications.

Processor

AMD Carrizo-L A8-7410

CPU speed: 2.2 GHz (2.5 GHz max turbo boost)
CPU cores: 4
CPU Cache: 2 MB
TDP: 15 W (cTDP: 12 W/25 W)
System on a Chip (SoC) design – chipset and processor are combined
Integrated graphics: AMD Radeon R5 Series

Memory

8 GB

Amount: 8 GB
Speed: PC3L-12800 MB/s
Type: DDR3L-1600

Memory upgrade information

Single channel memory architecture
One DDR3L SODIMM (204-pin) socket
Supports up to PC3L-12800 (DDR3L-1600)
Supports 2 GB, 4 GB, and 8 GB SODIMMs
Supports up to 4 GB on 32-bit systems

NOTE:

32-bit systems cannot address a full 4.0 GB of memory.
Supports up to 8 GB on 64-bit systems

NOTE:

Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system.

Video Graphics

Integrated graphics

Integrated graphics are based on the processor.

AMD E2-7110: Integrated Radeon R2 Series Graphics
AMD A6-7310: Integrated Radeon R4 Series Graphics
AMD A8-7410: Integrated Radeon R5 Series Graphics

Sound/Audio

Integrated audio

Audio Codec: Realtek ALC3252
Audio jack presence detection

Speakers

Integrated speakers

Networking

Integrated Bluetooth 4.0 and Wireless LAN 802.11b/g/n featuring 2.4 GHz 1×1 technology

Interface: M.2
Transmission standards: 802.11 b/g/n
Single band: 2.4 GHz

LAN: 1000BASE-T

Technology: Realtek RTL8161GSH
Data transfer speeds: up to 10/100/1000 Mb/s
Transmission standards: 1000BASE-T Gigabit Ethernet

Hard Drive

1 TB

Size: 1 TB
Interface: SATA
Rotational Speed: 7200 rpm

CD/DVD Disc Drive

Ultra Slim Tray SuperMulti DVD Burner drive

Memory Card Reader

3-in-1 Memory card reader

Figure : View of memory card reader

Supports the following cards:

Secure Digital (SD)
Secure Digital High Capacity (SDHC)
SDXC

Computer Case

All-in-One

Height: 42.4 cm (16.7 in)
Width: 58.2 cm (22.9 in)
Depth: 19.6 cm (7.7 in)
Weight: 6.45 kg (14.21 lbs) unpackaged

Front of the system

Figure : Front of the system

Webcam and microphone
Screen
Optical drive
Speakers
Power button

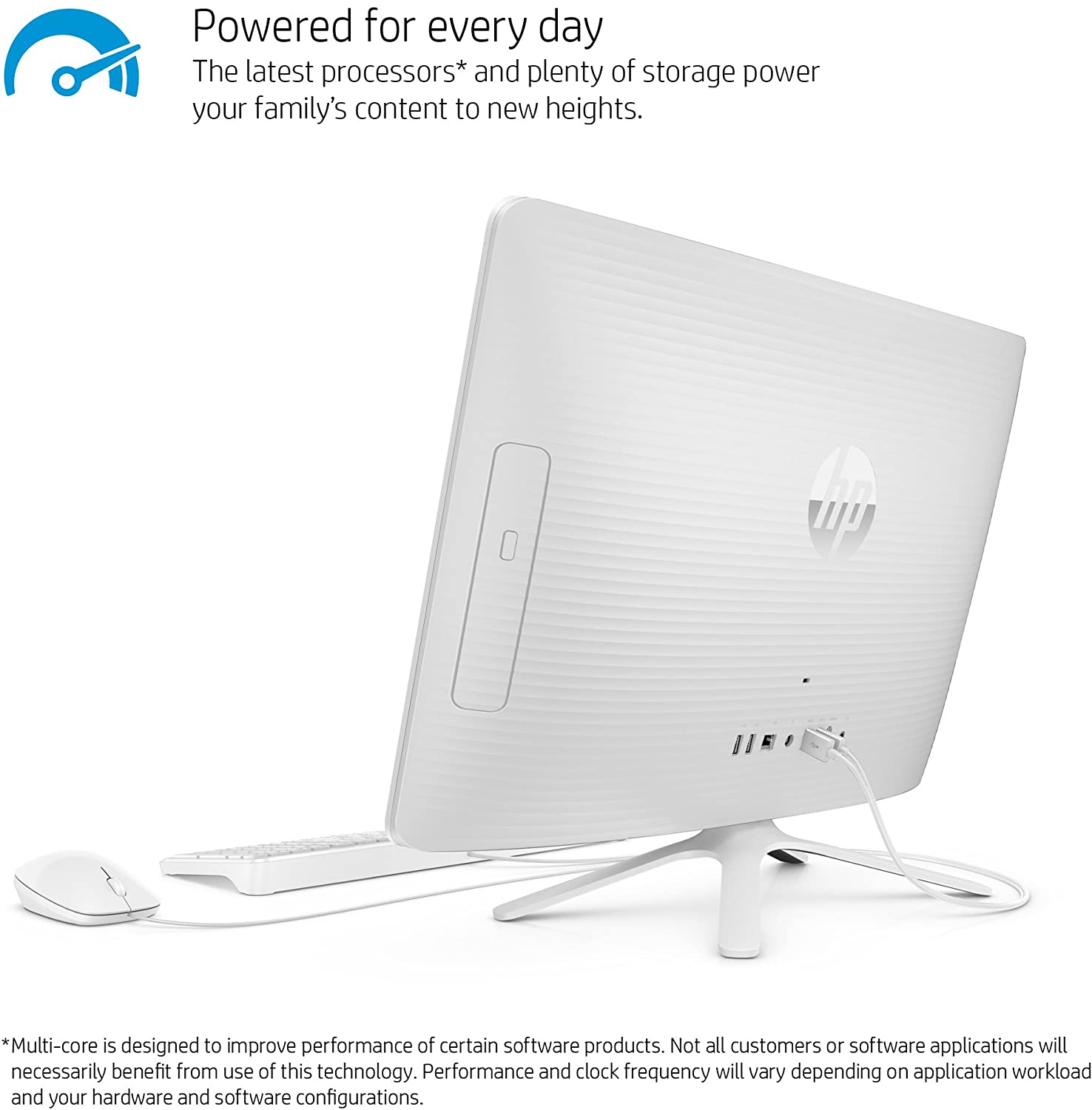

Back of the system

Figure : Back of the system

Optical drive
Power button
Back I/Os
Stand

Left side of the system

Figure : Left side of the system

Right side of the system

Figure : Right side of the system

Optical drive

Power Supply

External 65 W (100V-240V)

Total wattage: 65 W

Output voltage: 19.5 V

Output amps: 3.3

I/O Ports

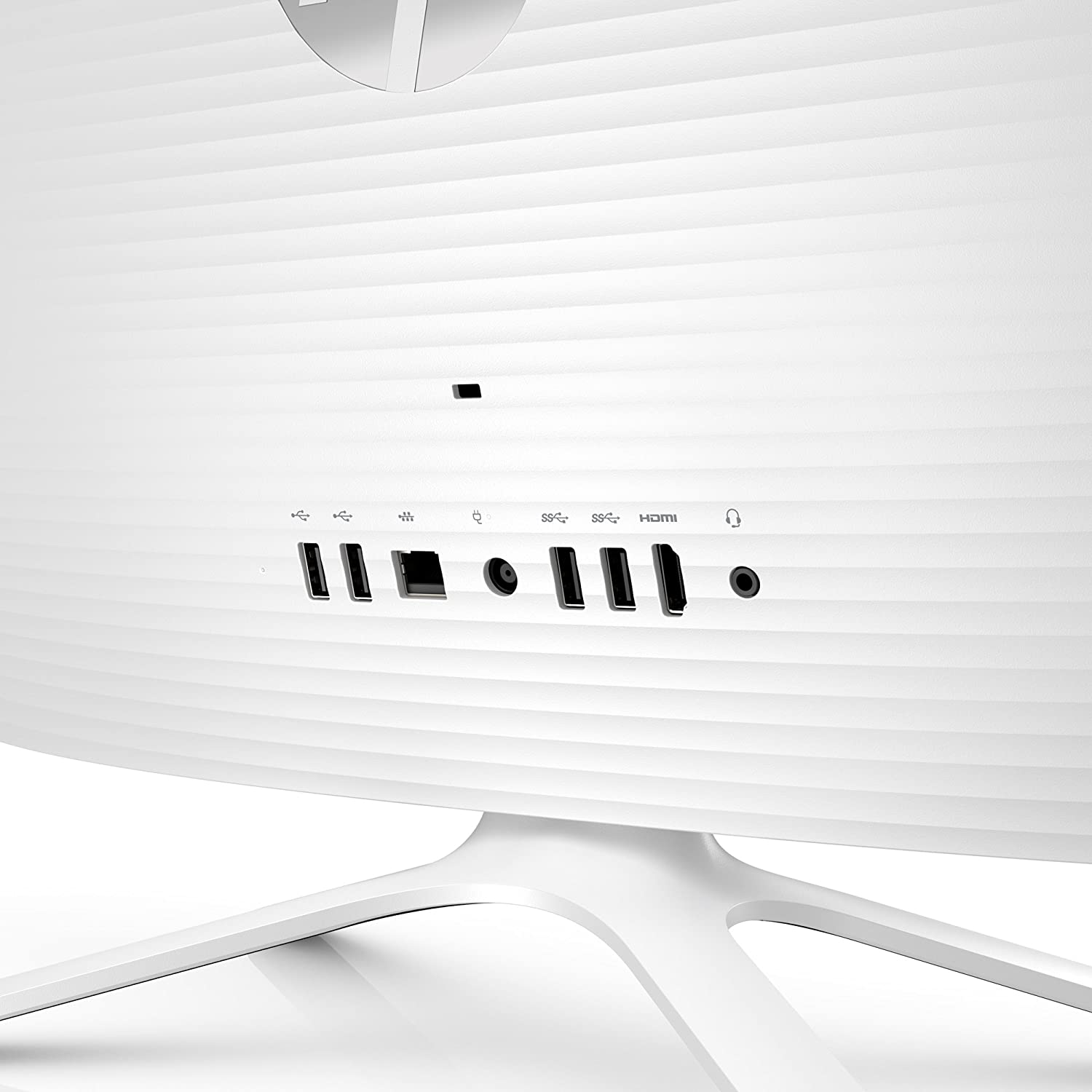

Back I/O ports

Figure : ProstT 24 back I/O ports

Lock slot
Disk activity LED
USB 2.0: 2
LAN (Ethernet)
Power LED
DC power in
USB 3.0: 2
HDMI
Headphone/Microphone

Keyboard, Mouse and Input Devices

HP USB keyboard

Interface: USB
Dimensions (approximately):
Special buttons*:

HP USB optical mouse

Interface: USB
Dimensions (approximately):
- Cable length: 1.8 m (5 ft, 11 in)
- Length: 114.6 mm (4.5 in)
- Width: 63.2 mm (2.5 in)
- Height: 37.2 mm (1.5 in)
