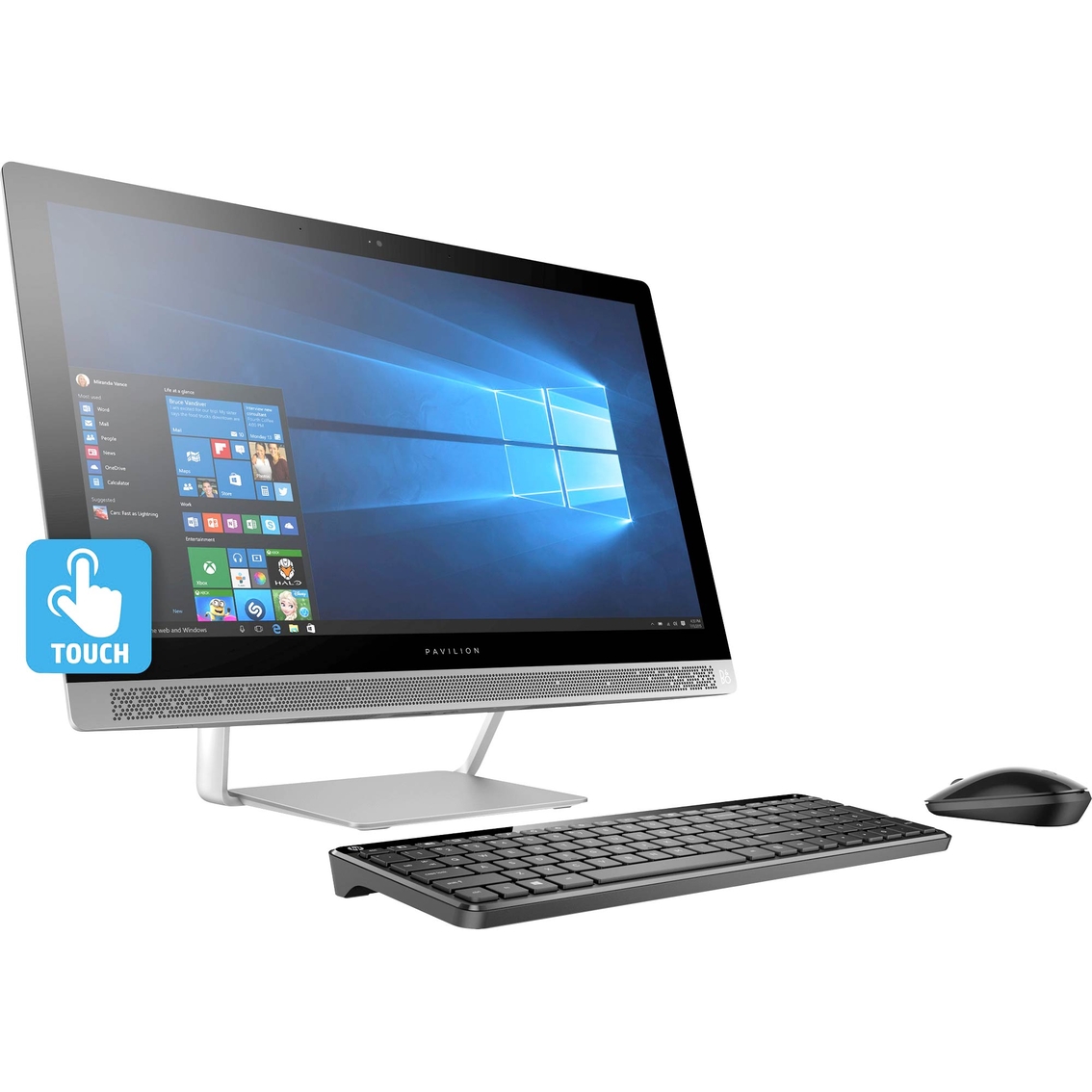

HP Pavilion 24-B0120 All-in-One AMD A9 Touch

620 $

HP PAVILION 24-B0120 ALL-IN-ONE AMD A9 TOUCH
AMD A9-9410 7^th GENERATION 3.5Ghz,
RAM 8GB DDR4, HDD 1TB,
DVDRW, CARD READER,
LED 24” IPS FULL HD TOUCH,
LAN GIGA, WIFI, BLUETOOTH,
WIRELESS KEYBOARD+MOUSE,
WINDOWS 10 64 ORIGINAL

SKU: 8ab7f340c229 Category: All-in-One PCs

HP PAVILION 24-B0120 ALL-IN-ONE AMD A9 TOUCH

Product Number

V8P37AA

Display

60.45 cm (23.8 in) 10-point touch-enabled diagonal widescreen full high-definition IPS WLED-backlit edge-to-edge display (1920 x 1080)

Size: 60.45 cm (23.8 in) diagonal
Display resolution: 1920 x 1080

Motherboard

Samui-A9

Form factor: Customized: 27.5×18.1 cm (10.8×7.1 in)
Memory sockets: 2 x DDR4
Expansion Slots:
- One M.2 slot for WLAN
For more details, see Samui-A9 motherboard specifications.

Processor

AMD A9-9410 (Stoney Ridge)

CPU speed: 2.9 GHz (3.5 GHz max turbo boost)
CPU cores: 2
CPU Cache: 1 MB L2
TDP: 15 W (cTDP – 10/25 W)
Integrated graphics: Radeon R5 Series

Memory

8 GB

Amount: 8 GB
Speed: PC4-17000 MB/s
Type: DDR4-2133

Memory upgrade information

Single channel memory architecture
Two DDR4 SODIMM (260-pin) sockets
Supports up to PC4-17000 (DDR4-2133)
Supports 2 GB, 4 GB, and 8 GB DDR4 SODIMMs
Supports up to 4 GB on 32-bit systems

NOTE:

32-bit systems cannot address a full 4.0 GB of memory.
Supports up to 16 GB (unbuffered) on 64-bit systems

NOTE:

Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system.

Video Graphics

Integrated graphics

Integrated Radeon R5 Series Graphics

Sound/Audio

Integrated audio

Audio Codec: Realtek ALC3252
Audio jack presence detection

Speakers

Integrated speakers

Networking

Integrated Bluetooth 4.0 and Wireless LAN 802.11a/b/g/n/ac featuring Dual-band (2.4 GHz and 5.0 GHz) 1 x 1 technology

Interface: M.2
Transmission standards: 802.11 a/ b/g/n/ac
Dual band: 2.4 GHz and 5.0 GHz

LAN: 1000BASE-T

Technology: Realtek RTL8161GSH
Data transfer speeds: up to 10/100/1000 Mb/s
Transmission standards: 1000BASE-T Gigabit Ethernet

Hard Drive

1 TB

Size: 1 TB
Interface: SATA
Rotational Speed: 7200 rpm

CD/DVD Disc Drive

Ultra Slim Tray SuperMulti DVD Burner drive

Memory Card Reader

3-in-1 Memory card reader

Figure : View of memory card reader

Supports the following cards:

Secure Digital (SD)
Secure Digital High Capacity (SDHC)
SDXC

Computer Case

All-in-One

Height: 44.7 cm (17.6 in)
Width: 57.9 cm (22.8 in)
Depth: 19.1 cm (7.5 in)
Weight: 8.43 kg (18.59 lbs) unpackaged

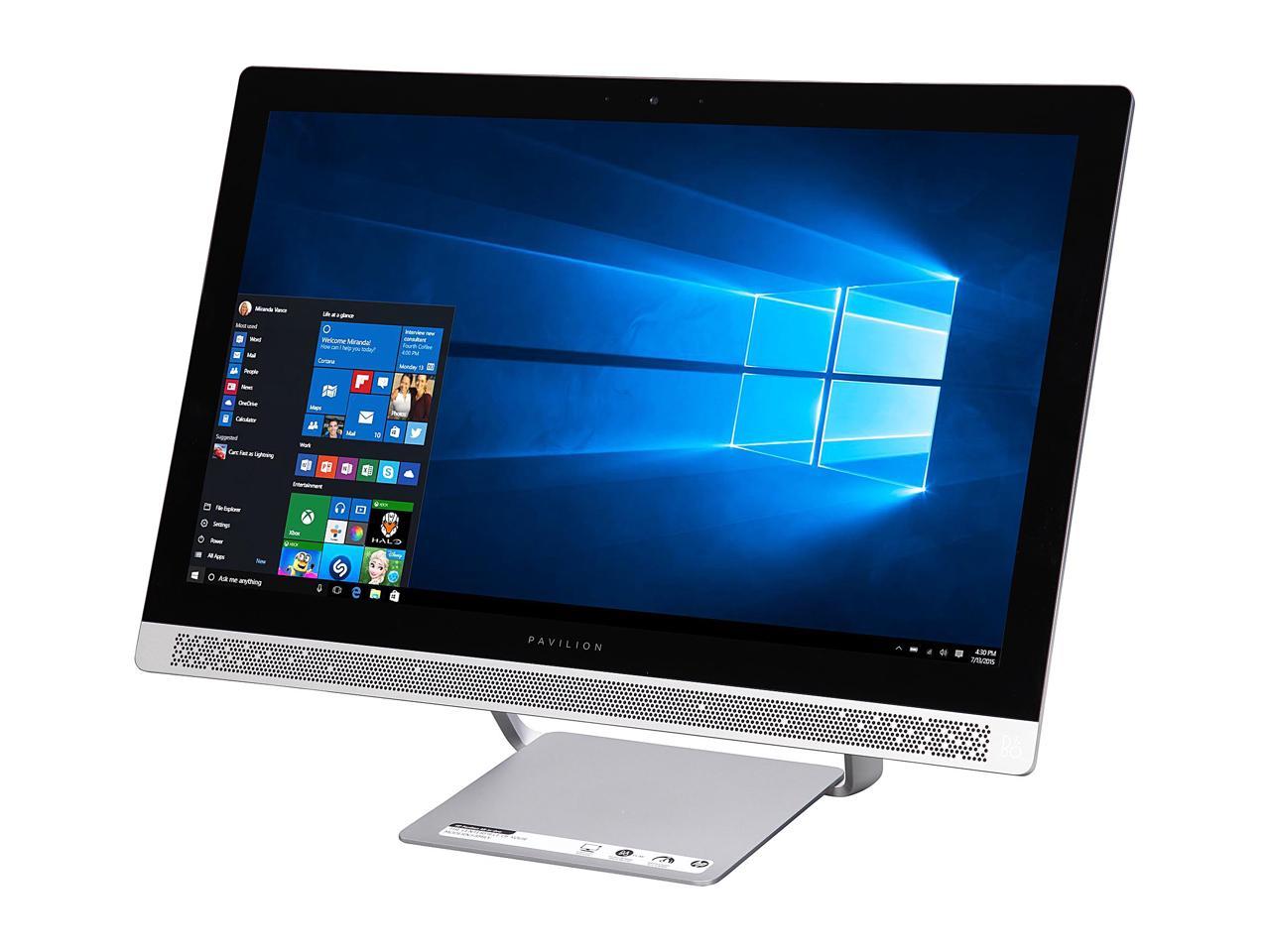

Front of the system

Figure : Front of the system

Webcam and microphone
Screen
Optical drive
Power button
Speakers
Bottom I/Os

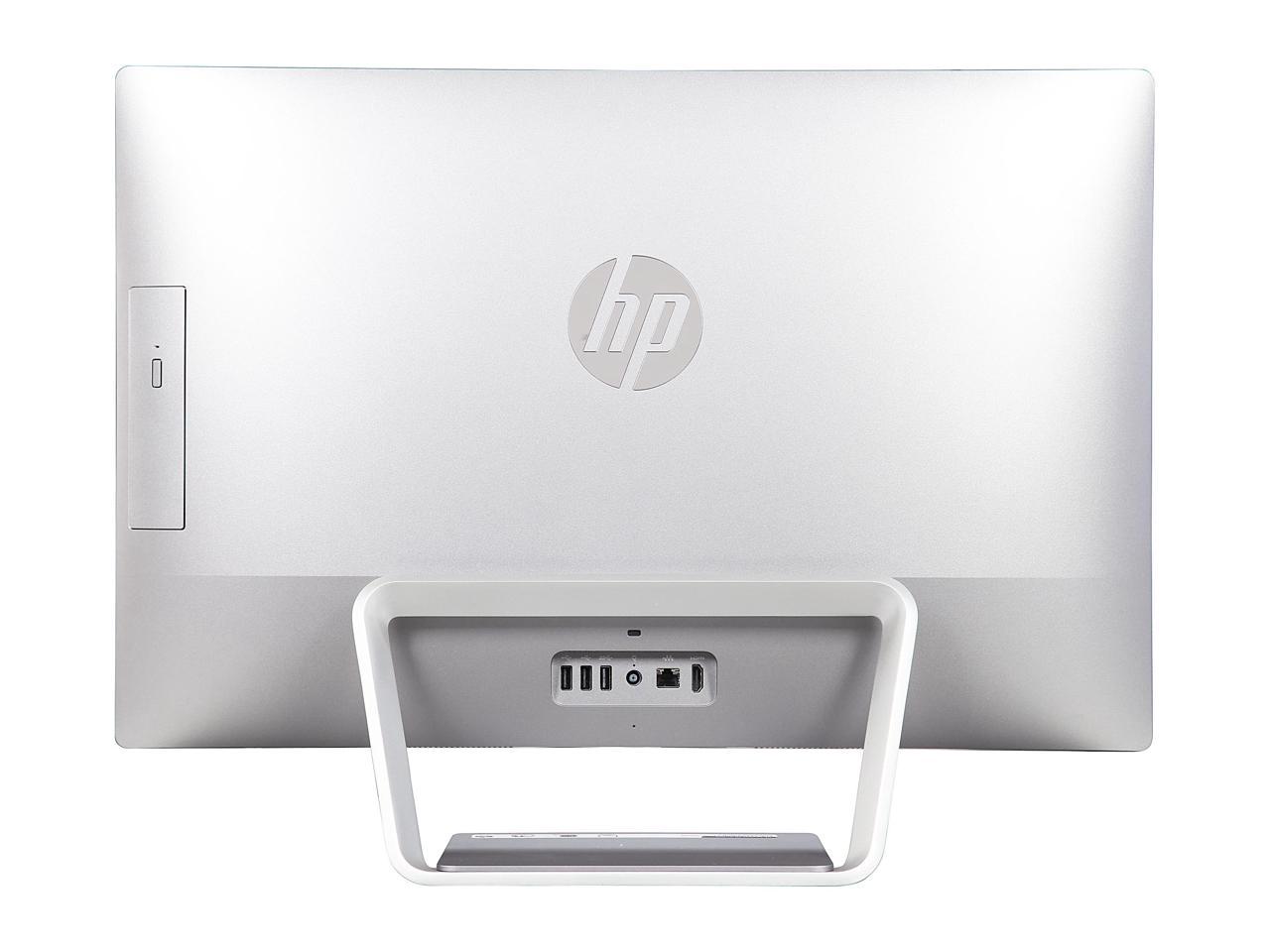

Back of the system

Figure : Back of the system

Optical drive
Power button
Back I/Os
Stand

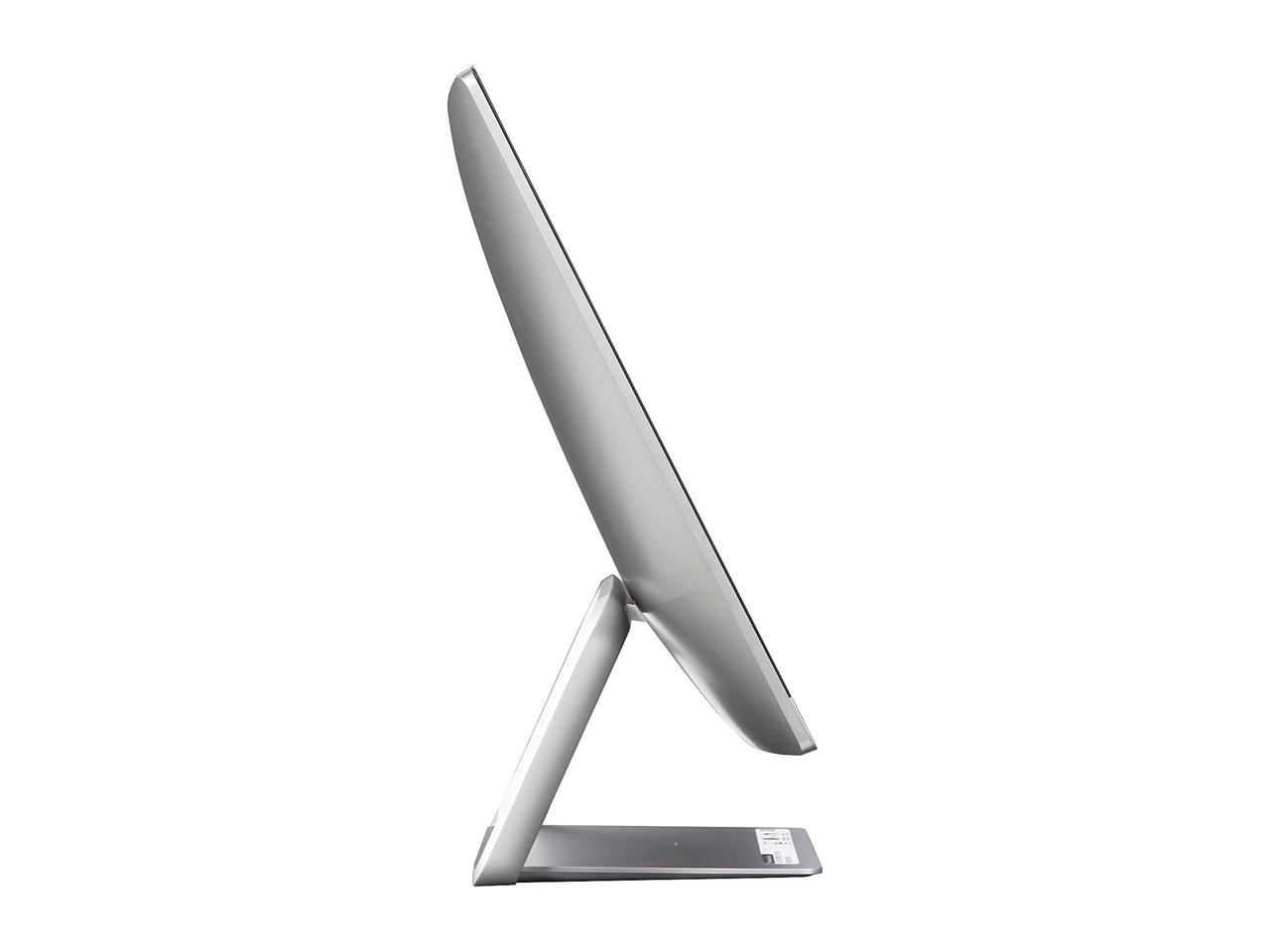

Left side of the system

Figure : Left side of the system

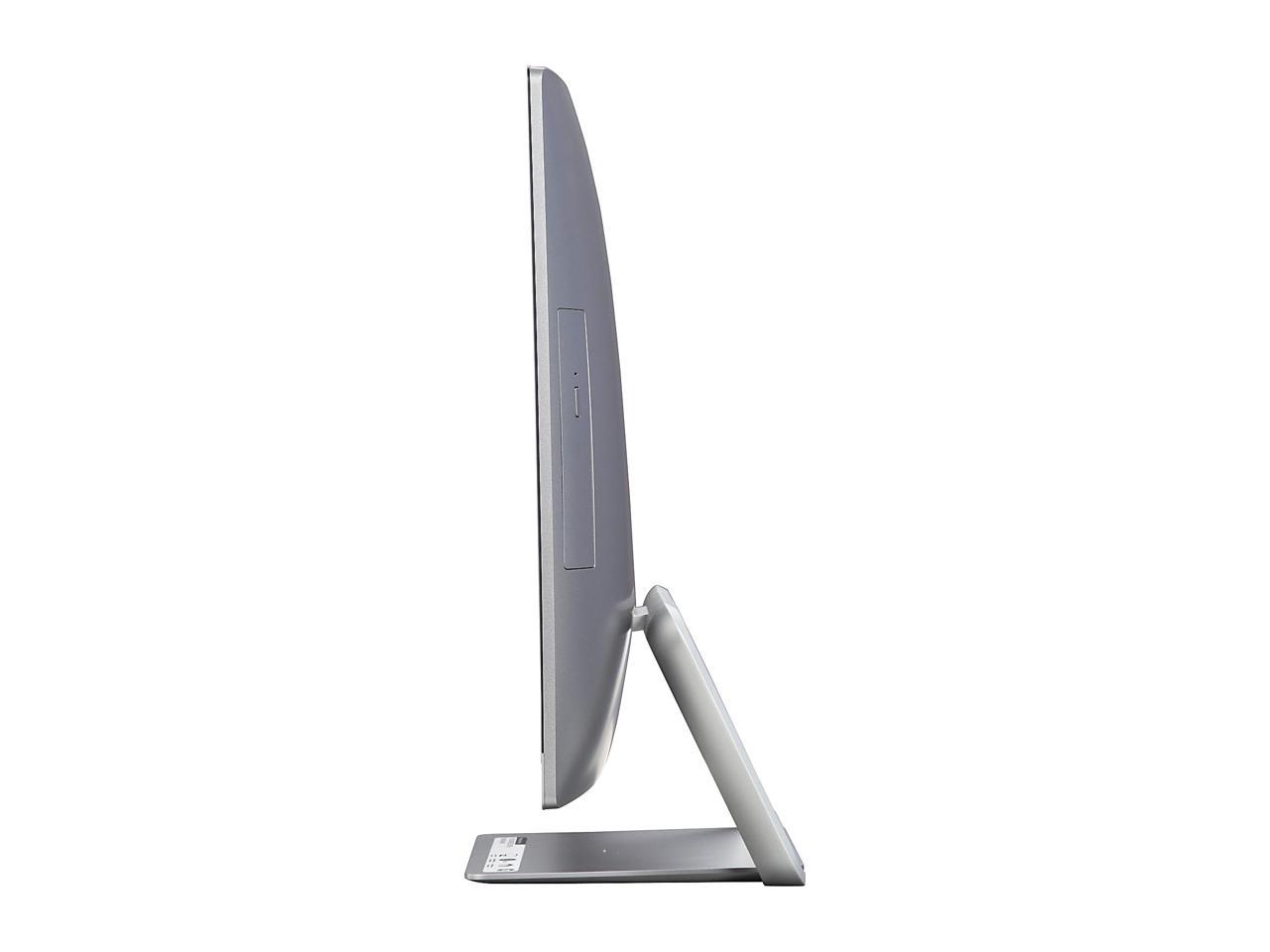

Right side of system

Figure : Right side of system

Optical drive

Power Supply

External 90W (100V-240V)

Total wattage: 90W
Nominal input voltage range: 100-240V (50-60Hz)
Dimensions: 134 x 58 x 31 mm (5.2 x 2.2 x 1.2 in)
Output voltage: 19.5V

I/O Ports

Back I/O ports

Figure : FangioT 24 back I/O ports

Lock slot
USB 2.0: 2
USB 3.0: 1
DC power in
Power LED
LAN (Ethernet)
HDMI
Disk activity LED

Bottom I/O ports

Figure : FangioT 24 Bottom I/O ports

USB-C: 1
USB 3.0 charging: 1
Headphone/Microphone: 1
Memory card reader

Keyboard, Mouse and Input Devices

Wireless keyboard

Wireless technology: Two-way radio frequency
Batteries: 2 AAA alkaline batteries
Battery life: 10 months (typical)
Dimensions (approximate):
- Height: 26.5 mm (1.0 in)
- Width: 133.0 mm (5.2 in)
- Length: 380.2 mm (15.0 in)
Special keys:
- Mute
- Volume Up
- Volume Down

Wireless mouse

Wireless technology: Two-way 2.4GHz Radio Frequency
Batteries: 2 AA alkaline
Battery life: 6-12 months (typical)
Buttons:
- 2 primary buttons
- Clickable scroll wheel
Dimensions (approximate):
- Length: 114.8 mm (4.5 in)
- Width: 63.4 mm (2.5 in)
- Height: 37.2 mm (1.5 in)
