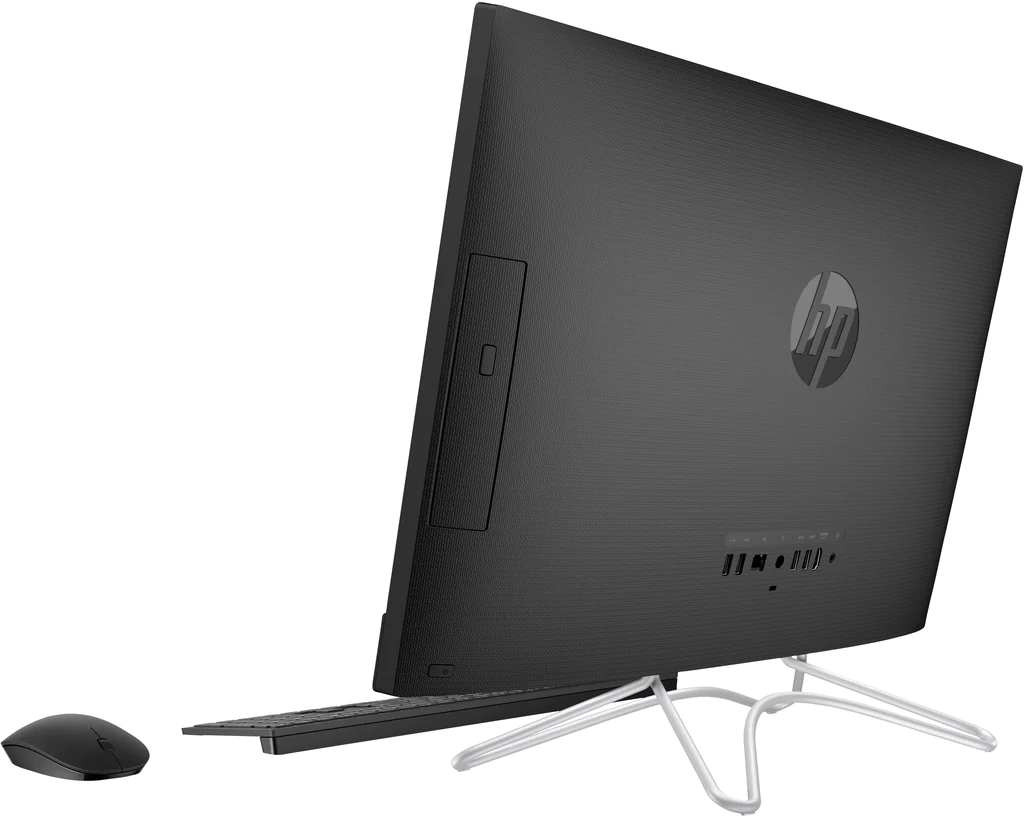

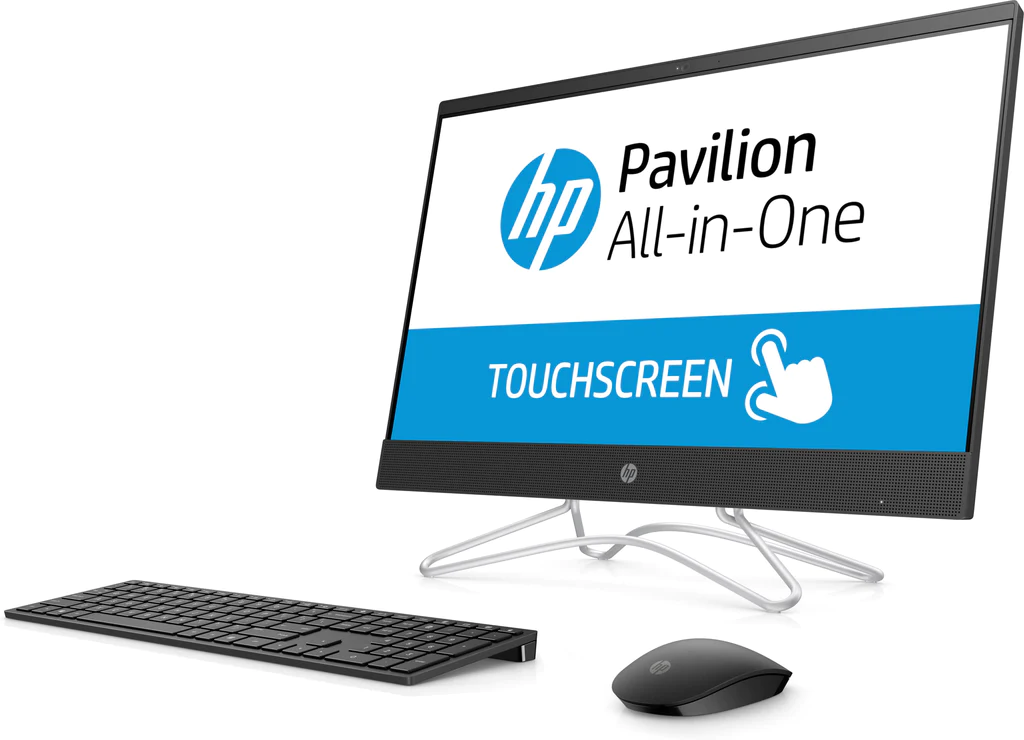

HP Pavilion 24-F0028CY All-in-One AMD A9 24″ Touch

• Size: 60.45 cm (23.8 in)
• Display resolution: 1920 x 1080

• Form factor: Customized
• Chipset: The chipset on this motherboard is combined with the processor into a single integrated circuit called System on a Chip (SoC). This technology combines the processor and chipset functionality into a single physical package.
• Memory sockets: 1 DDR4 SODIMM
• Expansion Slots:
  • One M.2 socket 1, 2230 type for WLAN
  • One M.2 socket 3, 2280 type for SSD
  • One M.2 slot for dGPU
• For more details, see Rhone motherboard specifications.

• CPU speed: 3.1 GHz (3.7 GHz – max turbo boost)
• CPU cores: 2
• CPU Cache (L2): 1 MB
• TDP: 15 W (cTDP – 10 W)
• Integrated graphics: Radeon R5 Series

• Amount: 4 GB
• Speed: PC4-17000 MB/s
• Type: DDR4-2133

• Single channel memory architecture
• DDR4 SODIMM (260-pin) socket
• Supports the following:
  • PC4-17000 (DDR4-2133)
• Supports 2 GB, 4 GB, 8 GB DDR4 SODIMMs
• Supports up to 4 GB on 32-bit systems

  NOTE:

  32-bit systems cannot address a full 4.0 GB of memory.

• Supports up to 16 GB on 64-bit systems

  NOTE:

  Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system.

• AMD Radeon Graphics

• Audio Codec: Realtek ALC3247
• Audio jack presence detection

• 2-pins internal 2 W speaker header x 2

• Interface: M.2
• Transmission standards: 802.11 a/b/g/n/ac

• Technology: Realtek RTL8111GSH
• Data transfer speeds: up to 10/100/1000 Mb/s
• Transmission standards: 1000BASE-T Gigabit Ethernet

• Size: 1 TB
• Interface: SATA
• Rotational Speed: 7200 RPM

• Secure Digital (SD)
• Secure Digital High Capacity (SDHC)
• SDXC

• Height: 41.95 cm (16.5 in)
• Width: 54.09 cm (21.3 in)
• Depth: 20.41 cm (8.0 in)
• Weight: 9.34 kg (20.6 lbs) packaged

1. Webcam
2. Screen
3. Optical drive
4. Power button
5. Card reader
6. Speakers

• Wireless technology: Nordic Single chip nRF24LE1/LU1 OTP
• Effective distance (typical): 10 m (32.8 ft)
• Batteries: 2 AAA alkaline batteries
• Battery life: 12 months (typical)
• Dimensions (approximate):
  • Height: 17 mm (0.7 in)
  • Width: 114 mm (4.5 in)
  • Length: 409 mm (16.1 in)
• Special keys:
  • Mute
  • Volume Up
  • Volume Down

• Wireless technology: Nordic Single chip nRF24LE1/LU1 OTP
• Effective distance (typical): 10 m (32.8 ft)
• Batteries: 2 AAA alkaline
• Battery life: 5 months (typical)
• Tracking speed (typical): 10 in/s
• Accuracy: 15%
• Buttons:
  • 2 primary buttons
  • Scroll wheel
• Dimensions (approximate):
  • Length: 119.5 mm (4.7 in)
  • Width: 65.0 mm (2.6 in)
  • Height: 31.6 mm (1.2 in)

NOTE:

Chassis color might vary depending on your model.

1. Webcam
2. Webcam activity LED
3. Microphones
