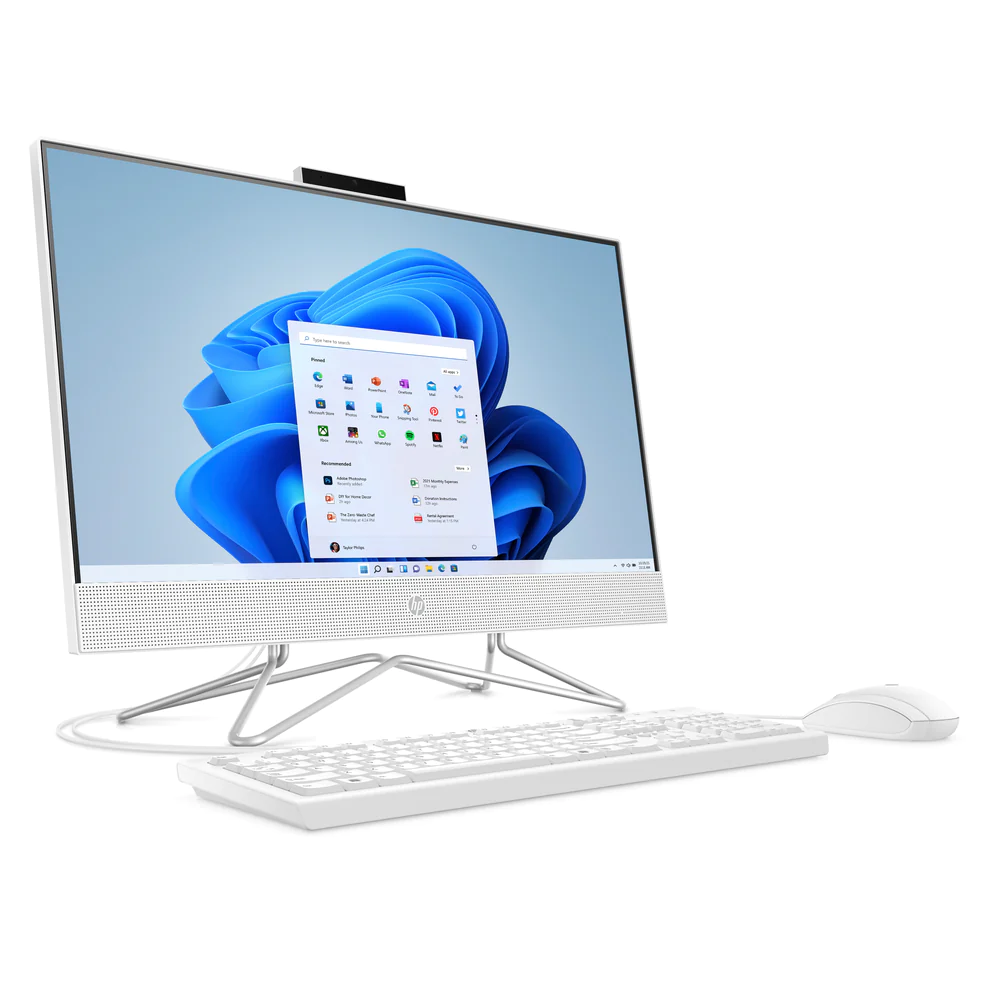

HP Pavilion 22-C0009 All-in-One AMD A9 22″ White

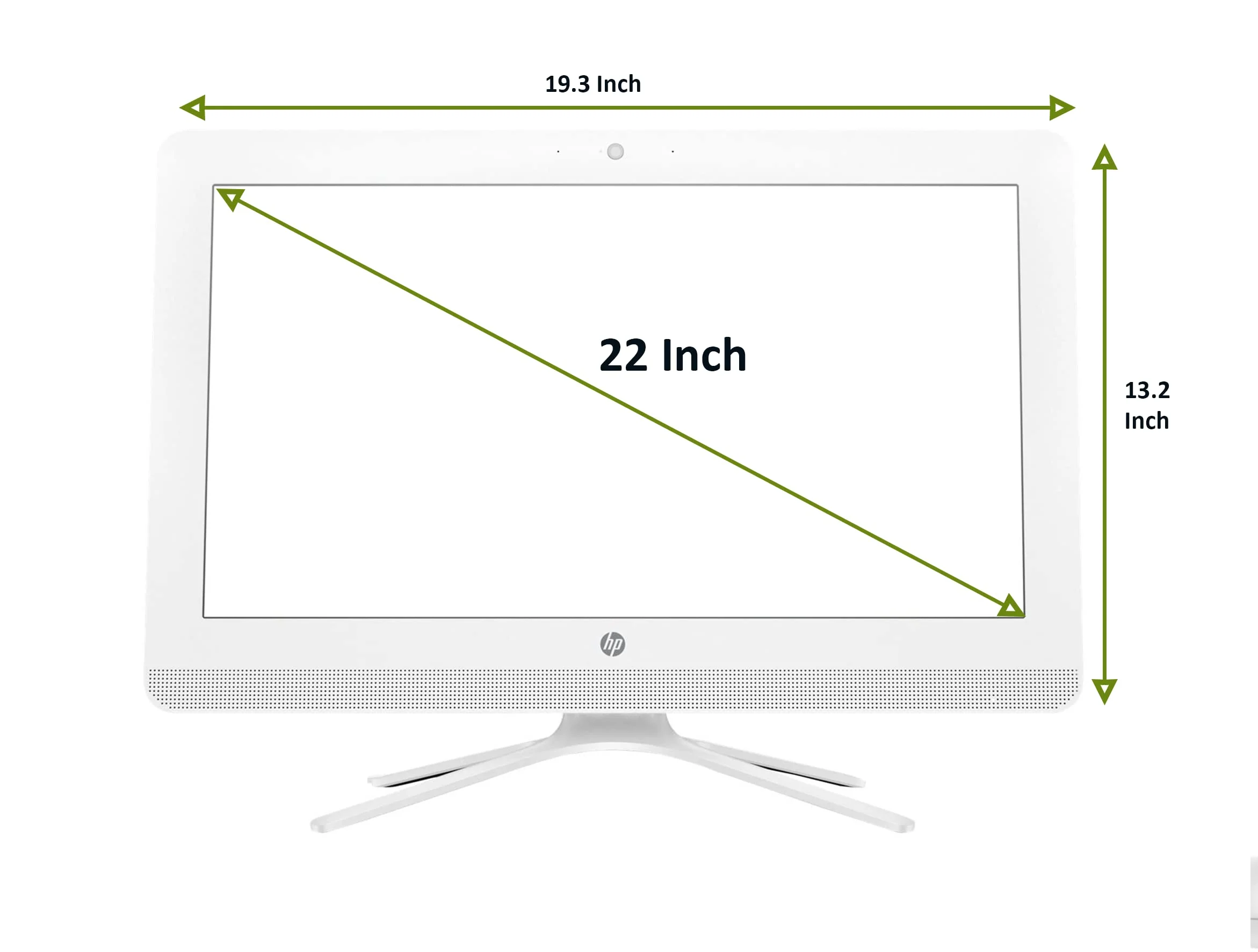

• Size: 54.61 cm (21.5 in)
• Display resolution: 1920 x 1080

• Form factor: Customized
• Chipset: The chipset on this motherboard is combined with the processor into a single integrated circuit called System on a Chip (SoC). This technology combines the processor and chipset functionality into a single physical package.
• Memory sockets: 1 DDR4 SODIMM
• Expansion Slots:
  • One M.2 socket 1, 2230 type for WLAN
  • One M.2 socket 3, 2280 type for SSD
  • One M.2 slot for dGPU
• For more details, see Rhone motherboard specifications.

• CPU speed: 3.1 GHz (3.7 GHz – max turbo boost)
• CPU cores: 2
• CPU Cache (L2): 1 MB
• TDP: 15 W (cTDP – 10 W)
• Integrated graphics: Radeon R5 Series

• Amount: 8 GB
• Speed: PC4-17000 MB/s
• Type: DDR4-2133

• Single channel memory architecture
• DDR4 SODIMM (260-pin) socket
• Supports the following:
  • PC4-17000 (DDR4-2133)
• Supports 2 GB, 4 GB, 8 GB DDR4 SODIMMs
• Supports up to 4 GB on 32-bit systems

  NOTE:

  32-bit systems cannot address a full 4.0 GB of memory.

• Supports up to 16 GB on 64-bit systems

  NOTE:

  Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system.

• AMD Radeon Graphics

• Audio Codec: Realtek ALC3247
• Audio jack presence detection

• 2-pins internal 2 W speaker header x 2

• Interface: M.2
• Transmission standards: 802.11 a/b/g/n/ac
• Dual band: 2.4 GHz and 5.0 GHz

• Technology: Realtek RTL8111GSH
• Data transfer speeds: up to 10/100/1000 Mb/s
• Transmission standards: 1000BASE-T Gigabit Ethernet

• Size: 1 TB
• Interface: SATA
• Rotational Speed: 7200 RPM

• Secure Digital (SD)
• Secure Digital High Capacity (SDHC)
• SDXC

• Height: 48.3 cm (19.0 in)
• Width: 24.8 cm (9.8 in)
• Depth: 59.8 cm (23.6 in)
• Weight: 7.76 kg (17.11 lbs) packaged

1. Webcam
2. Screen
3. Optical drive
4. Power button
5. Card reader
6. Speakers

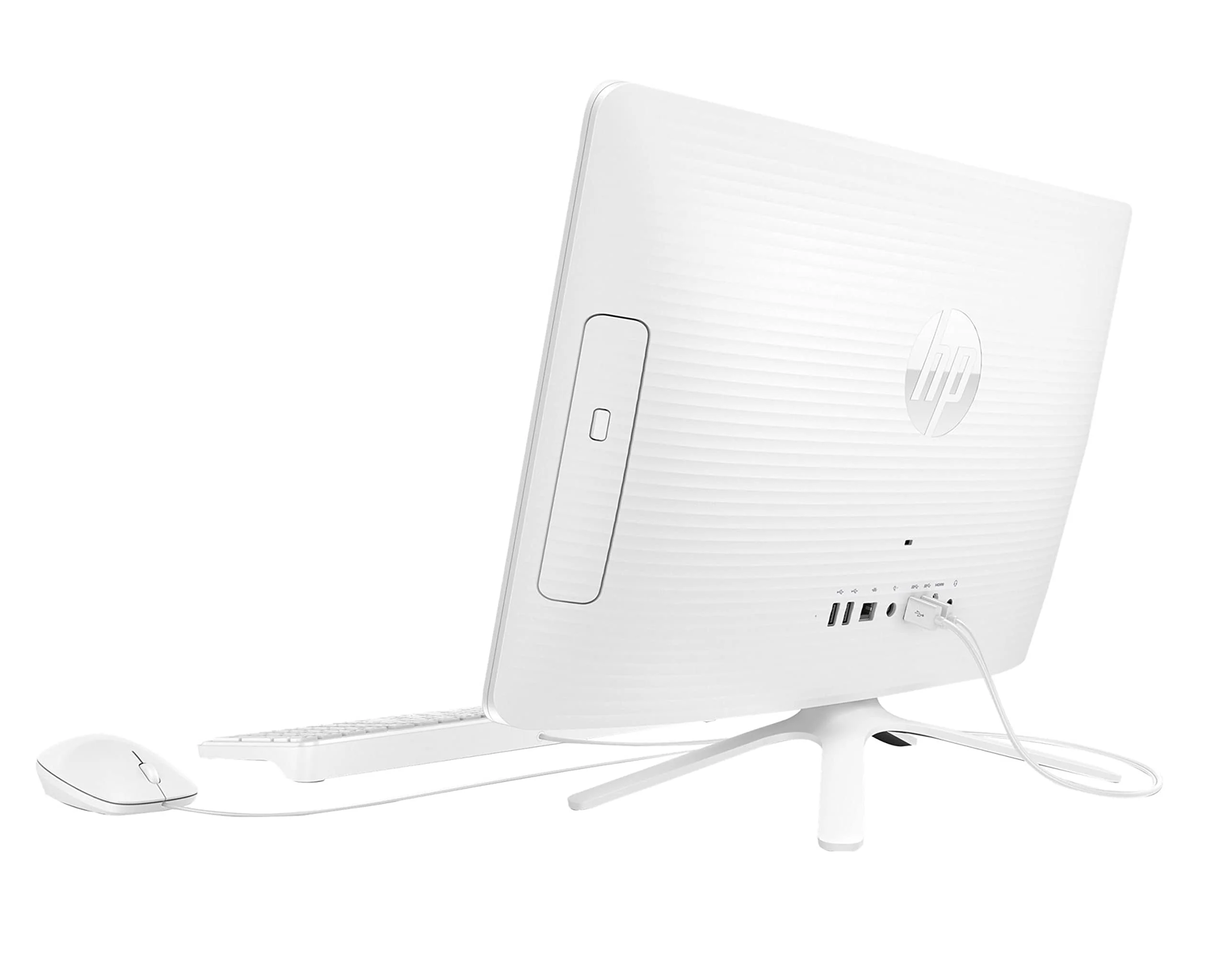

1. Optical drive
2. Power button
3. Back I/Os
4. Stand

NOTE:

The configuration might vary depending on your model.

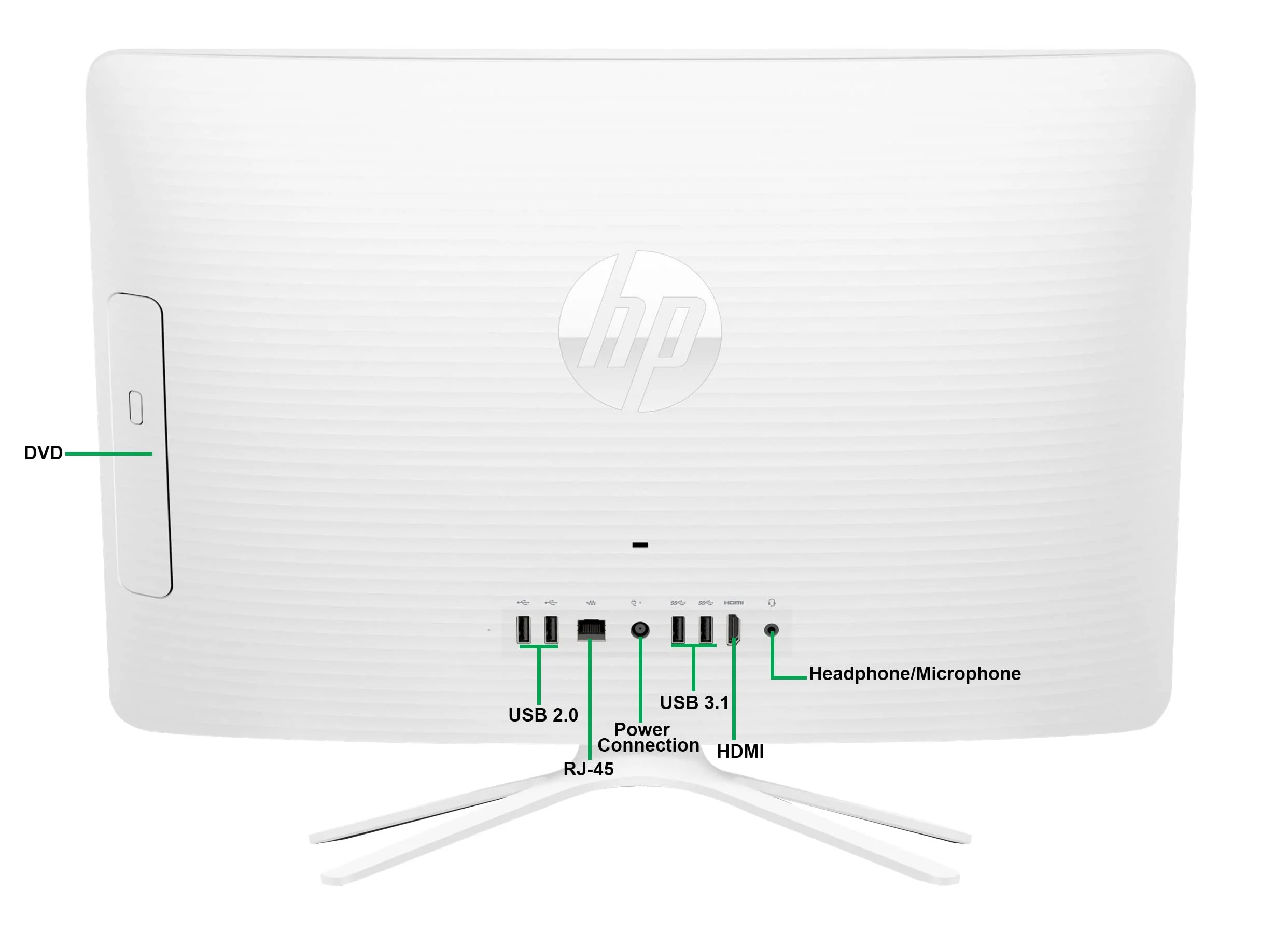

1. Lock slot
2. USB 2.0: 2
3. LAN (Ethernet)
4. DC power in
5. Power LED
6. USB 3.1: 2
7. HDMI out
8. Headphone/Microphone
9. Disk activity LED

• Cable: 1.9 m (6.2 ft)
• Dimensions (approximate):
  • Height: 14.4 cm (5.7 in)
  • Width: 41.0 cm (16.1 in)
  • Depth: 2.23 cm (0.9 in)
• Special keys:
  • Mute
  • Volume down
  • Volume up
  • Previous track
  • Play/Pause
  • Next track
  • Brightness down
  • Brightness up
  • Calculator

• Cable: 2.0 m (6.6 ft)
• Travel distance: 0.5 mm +/- 0.25 mm
• Weight (approximate): 90 g
• Dimensions (approximate):
  • Height: 11.9 cm (4.7 in)
  • Width: 6.5 cm (2.6 in)
  • Depth: 3.2 cm (1.3)

NOTE:

Chassis color might vary depending on your model.

1. Webcam
2. Webcam activity LED
3. Microphones
